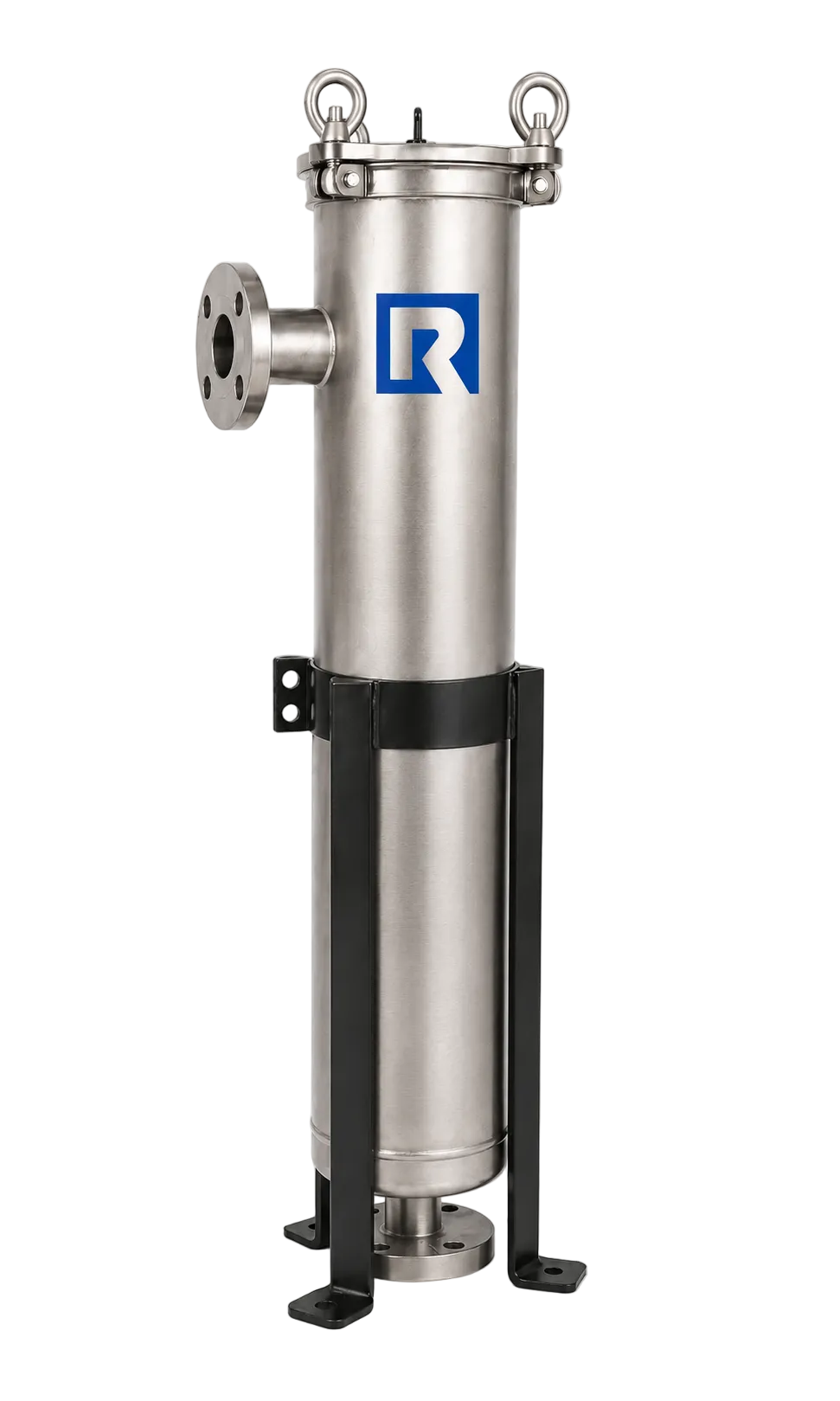

Rosedale Model 8-30 Filter Housing - Eyebolt

The Rosedale Model 8-30 industrial filter housing is a high-capacity, single-bag filtration vessel designed for industrial liquid filtration at moderate to high flow rates. It accommodates one Size #2 filter bag and is commonly used in chemical processing, coatings, water treatment, and general industrial filtration where durability, ease of maintenance, and material compatibility are critical. The Model 8-30 is available in carbon steel, 304 stainless steel, and 316 stainless steel, allowing material selection based on process fluid compatibility, corrosion resistance requirements, and operating environment without changing the housing footprint or performance characteristics.

Why Choose the Rosedale 8-30 Filter Housing?

• Heavier-gauge construction delivers superior durability, rigidity, and long-term reliability in demanding industrial environments

• Supports high flow rates using a single Size #2 filter bag


• Multiple construction material options to match chemical compatibility requirements

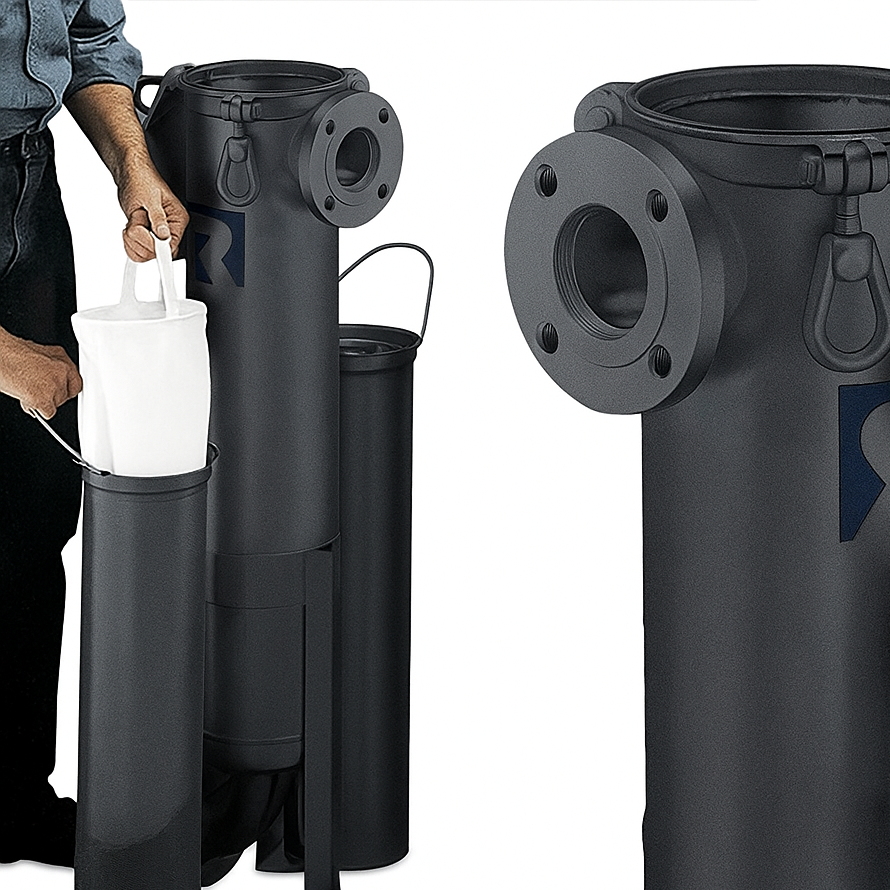

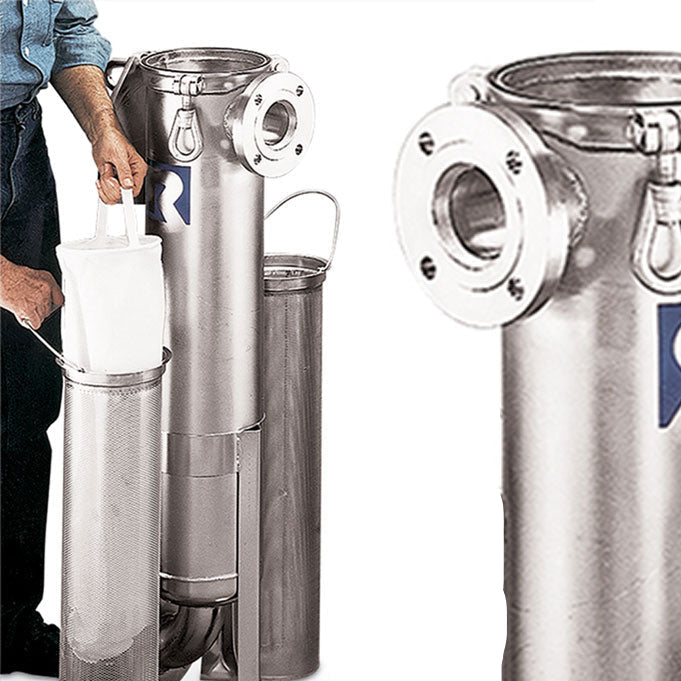

• Simple cover design for fast bag change-outs and reduced downtime

• Compatible with standard industry filter bags across a wide range of micron ratings

• Suitable for continuous or batch filtration processes


Technical Overview

• Maximum operating pressure: 150 PSI

• Maximum flow rate: up to 220 GPM

• Typical operating flow range: 50–220 GPM, dependent on bag micron rating, fluid viscosity, and differential pressure

• Filter bag size: Size #2

• Construction materials (selectable): Carbon Steel, 304 Stainless Steel, 316 Stainless Steel, and Aluminum

• Standard basket: Filter bag basket with 9/64" perforations (PB)

• Includes housing, filter basket, O-rings, and support legs

Additional Information

View this informational PDF to learn more.

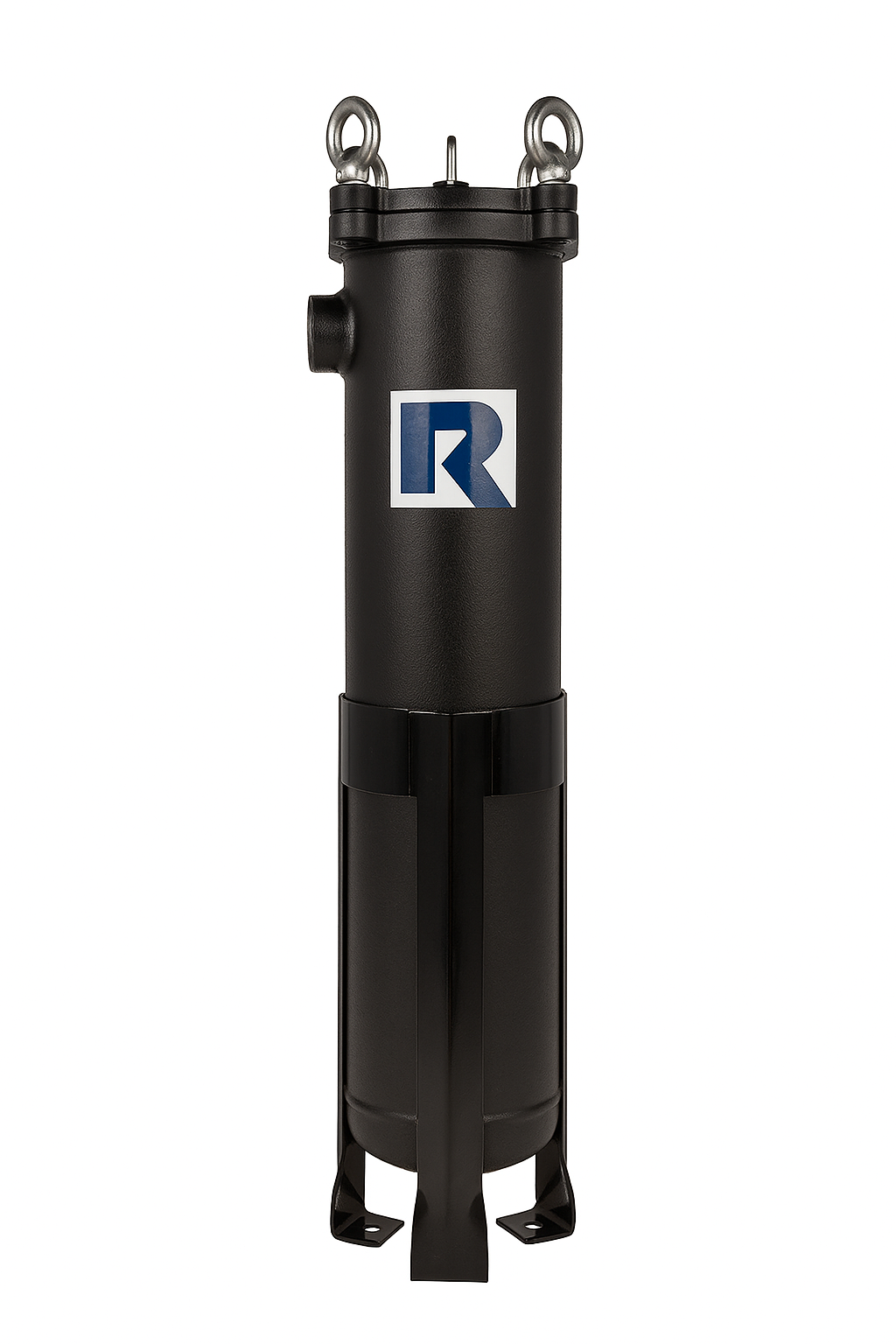

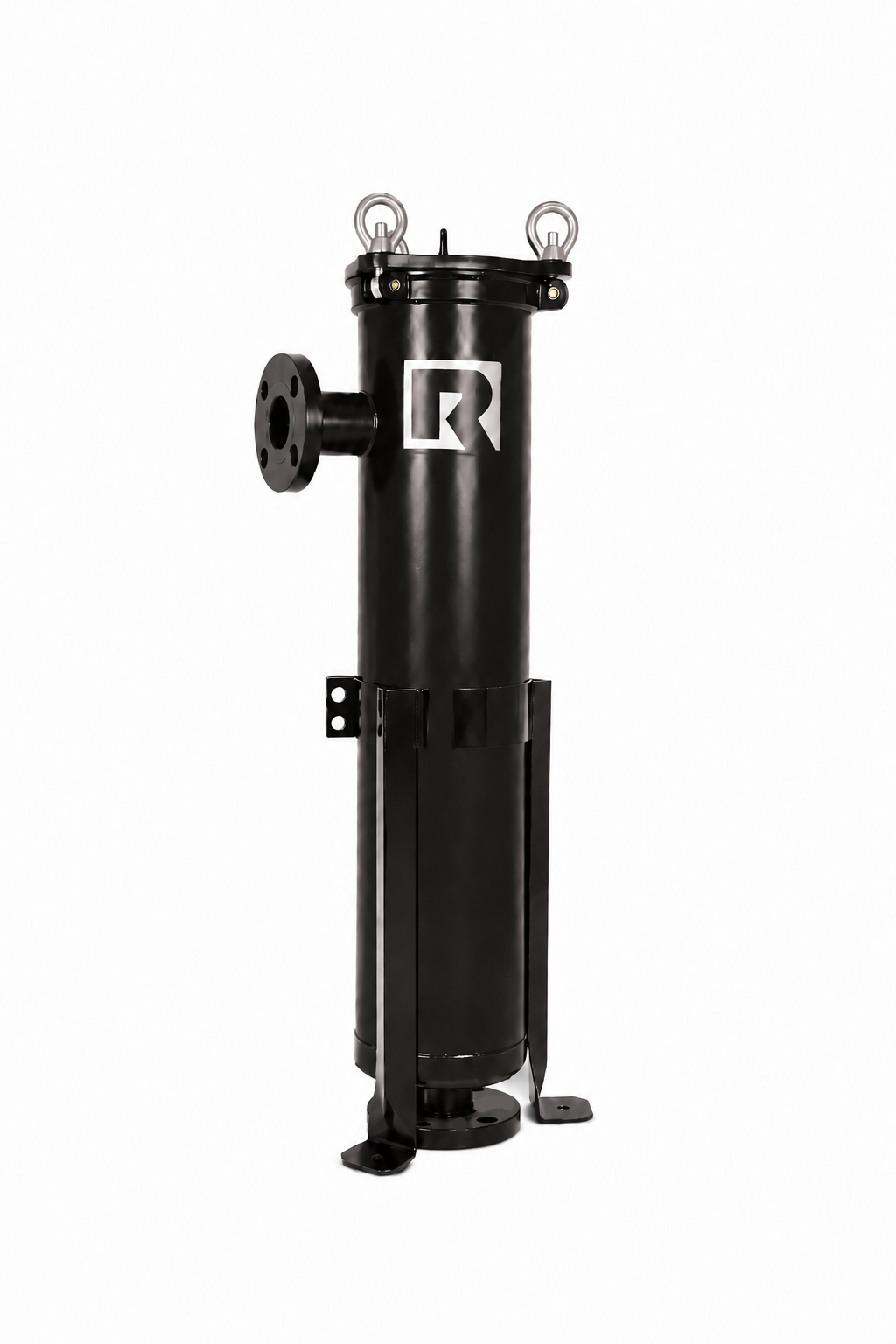

• Carbon Steel: Cost-effective choice for non-corrosive liquids and general industrial applications
• Aluminum: Lightweight option suitable for non-corrosive fluids where reduced weight, easier handling, or lower installation loads are desired

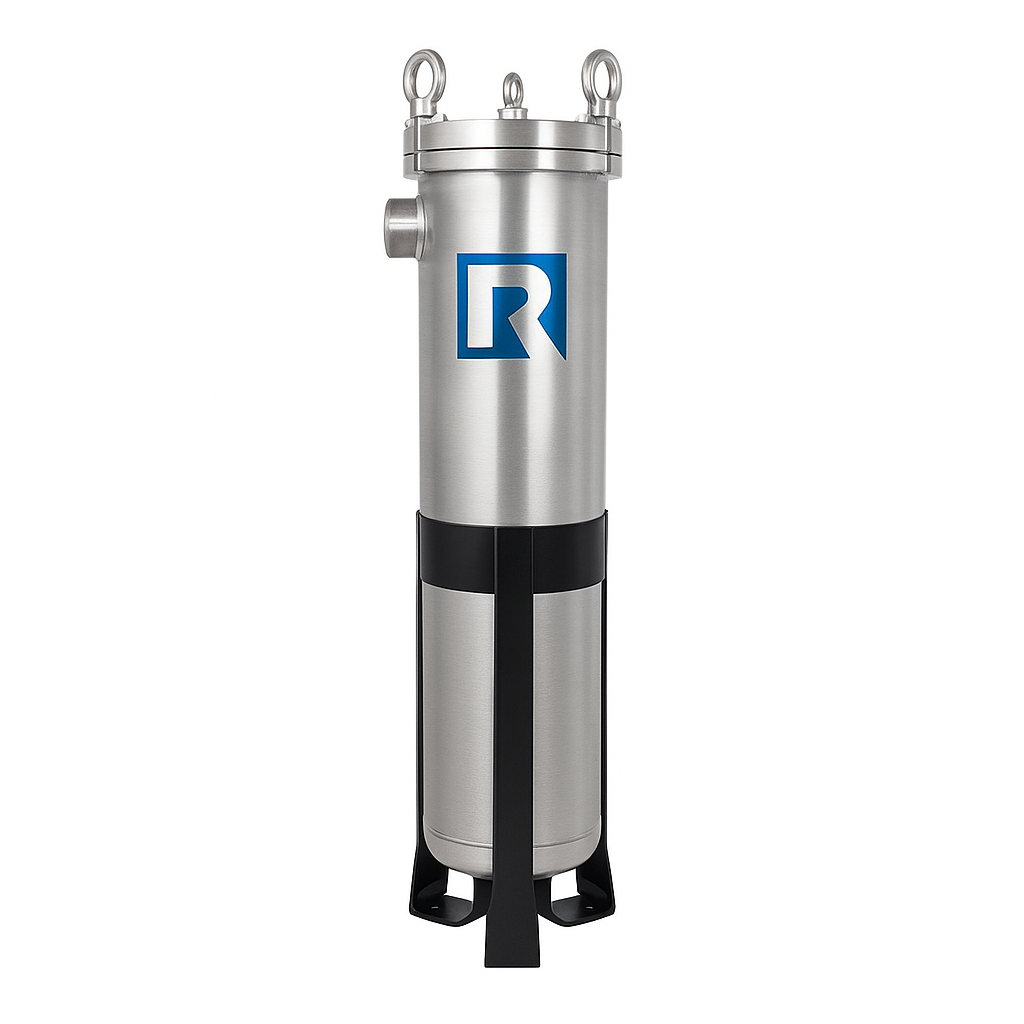

• 304 Stainless Steel: Suitable for mildly corrosive fluids and applications requiring improved corrosion resistance
• 316 Stainless Steel: Recommended for more aggressive or chloride-bearing fluids and demanding chemical environments
• Polypropylene (PP): Corrosion-resistant, suitable for acids, bases, and general chemical service
• PVDF: Premium material offering superior chemical resistance than polypropylene for aggressive chemical environments

• Chemical processing and fluid transfer

• Paints, coatings, inks, and resin filtration

• Industrial water and wastewater filtration

• Pre-filtration ahead of cartridge or membrane systems

• General process liquid filtration in manufacturing environments


Maximum at 150 PSI:

• Carbon Steel — up to 400°F
• 304 Stainless Steel — up to 400°F
• 316 Stainless Steel — up to 400°F
• Aluminum — up to 250°F

Maximum at 100 PSI:

• PVC — up to 150°F
• Polypropylene — up to 150°F
