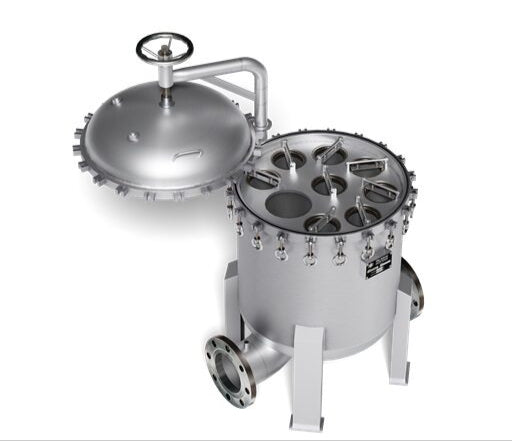

PSI Model 8B Multi-Bag Filter Housing (8 Bag)

The PSI 8-Bag Multi-Bag Filter Housing is our cost-effective, ready-to-ship solution for high-volume industrial filtration. Available in 304SS for general duty or 316SS for corrosive service, it uses a bolted lid with heavy basket clamps to ensure a tight seal and fast changeouts. With 8 standard #2 bags and a 150 PSI rating, it’s built for plants that need dependable throughput with minimal downtime.

Key Features

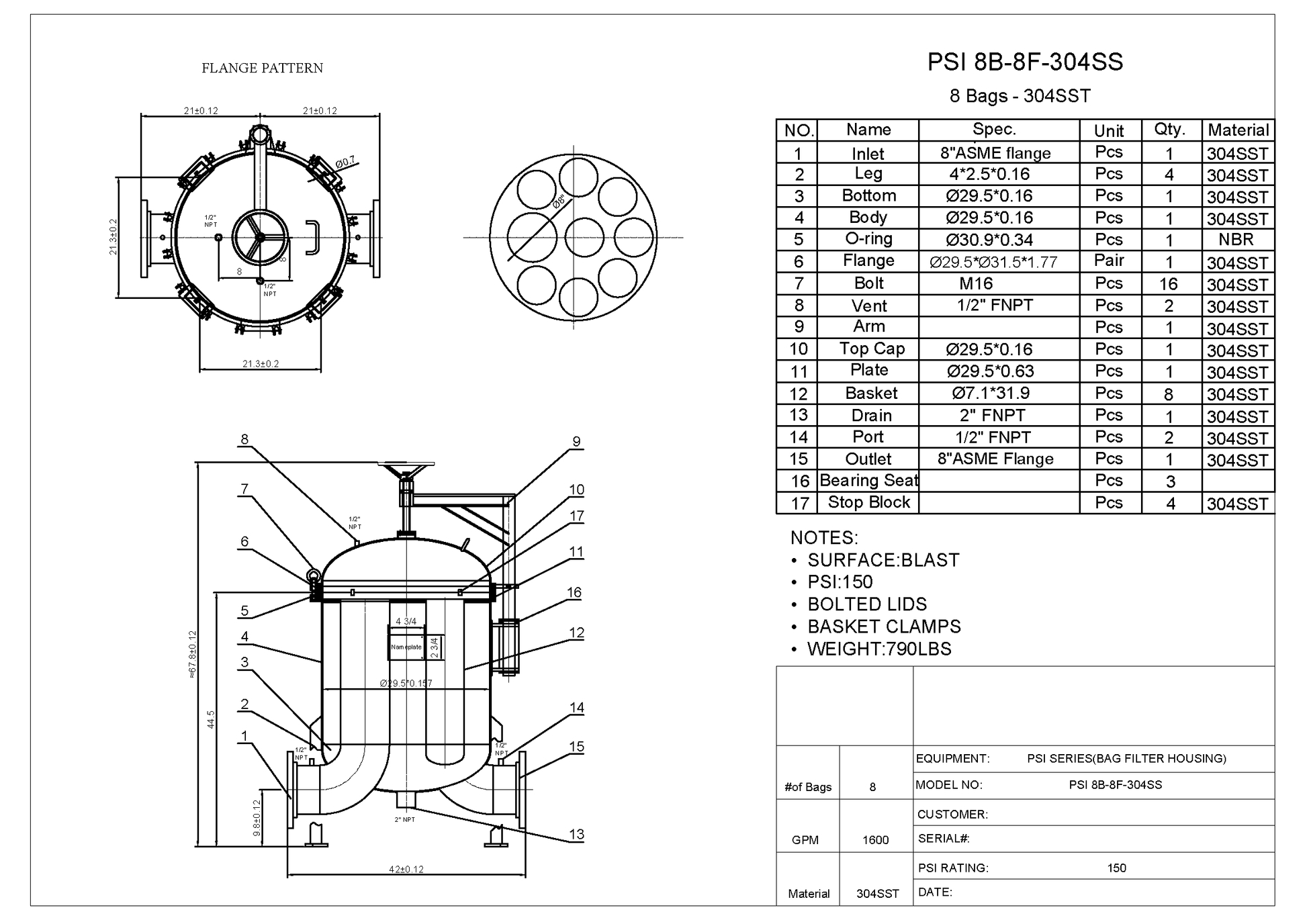

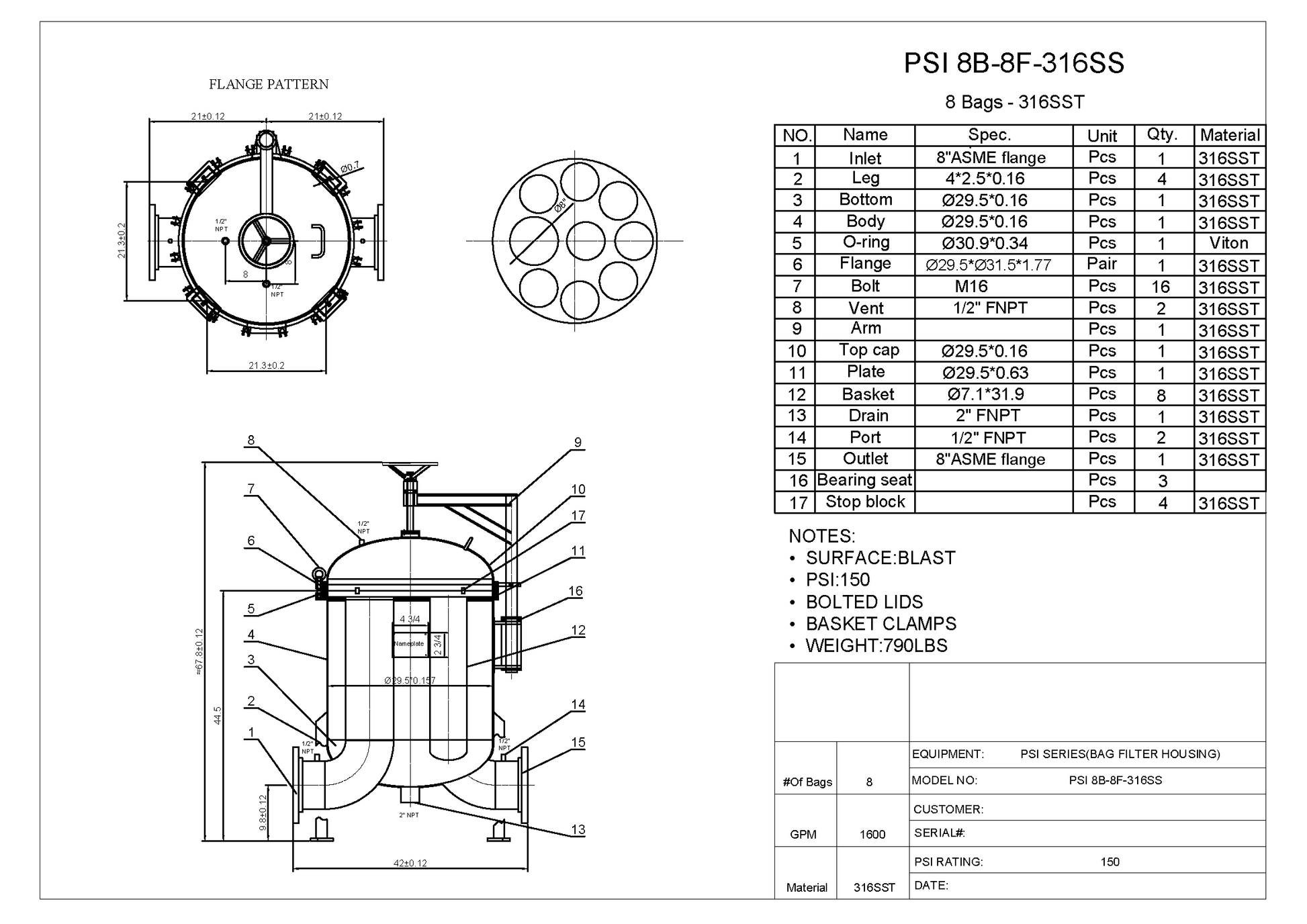

• Material options: 304SS or 316SS

• Capacity: 8 × #2 size bags (7" × 32")

• Flow rate: up to 1600 GPM

• Pressure rating: 150 PSI

• Connections: 8" ASME-flanged inlet & outlet; 2" FNPT drain; ½" FNPT ports; ½" vent

• Construction: Bolted lid with basket clamps; blast finish

• Weight: ~790 lb

Typical Applications
Water & wastewater, chemicals, coatings/inks, petrochemical, food & beverage, general industrial process fluids.
