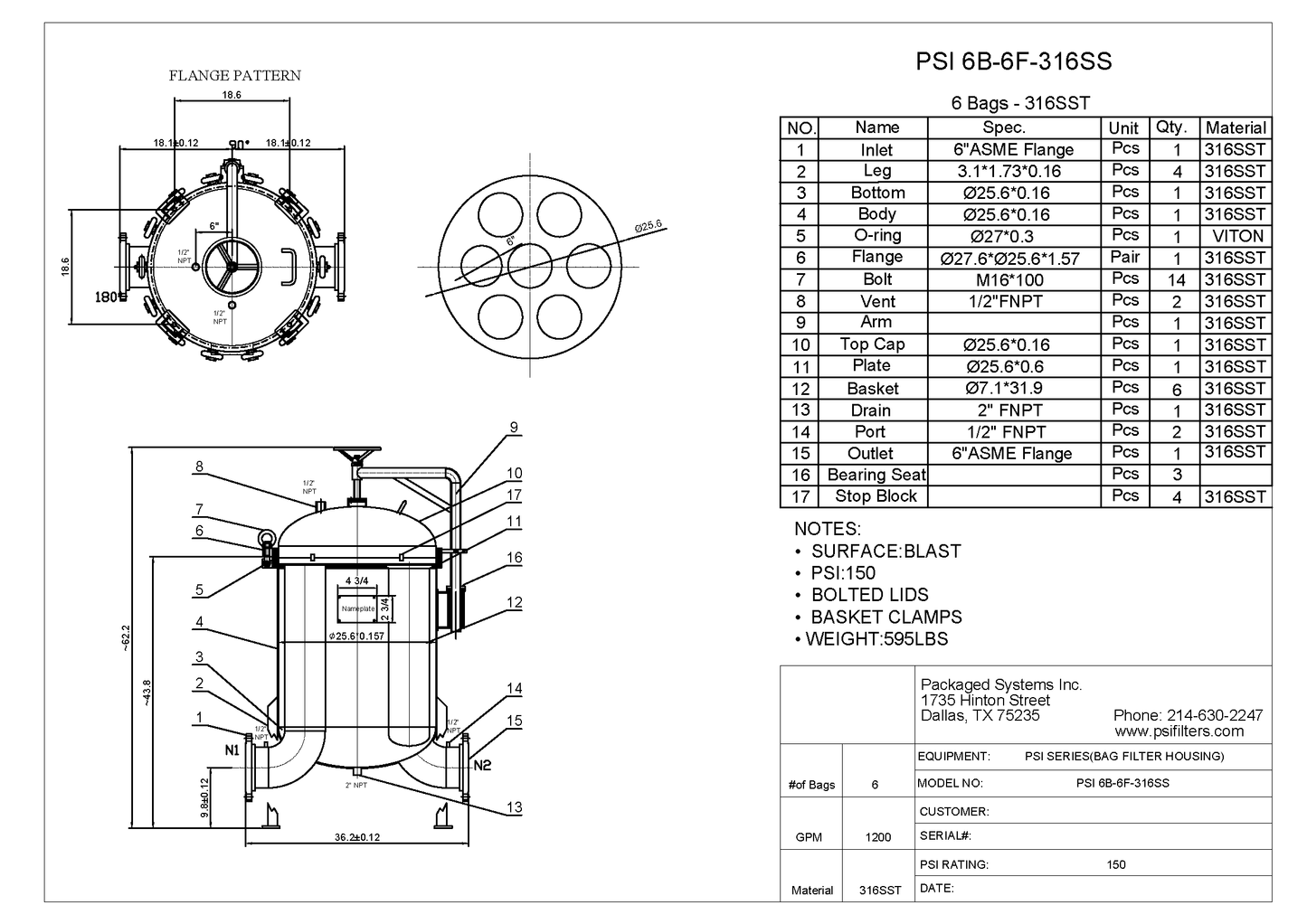

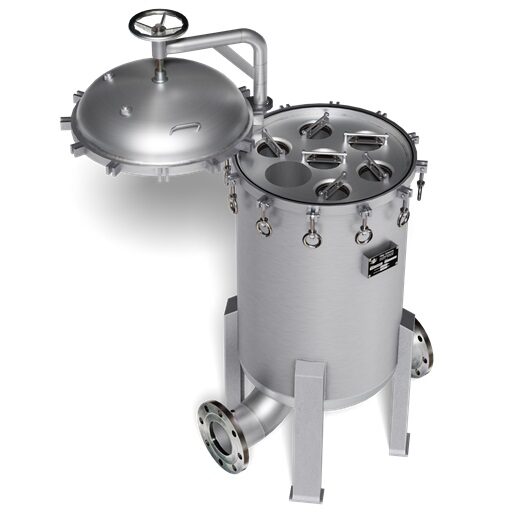

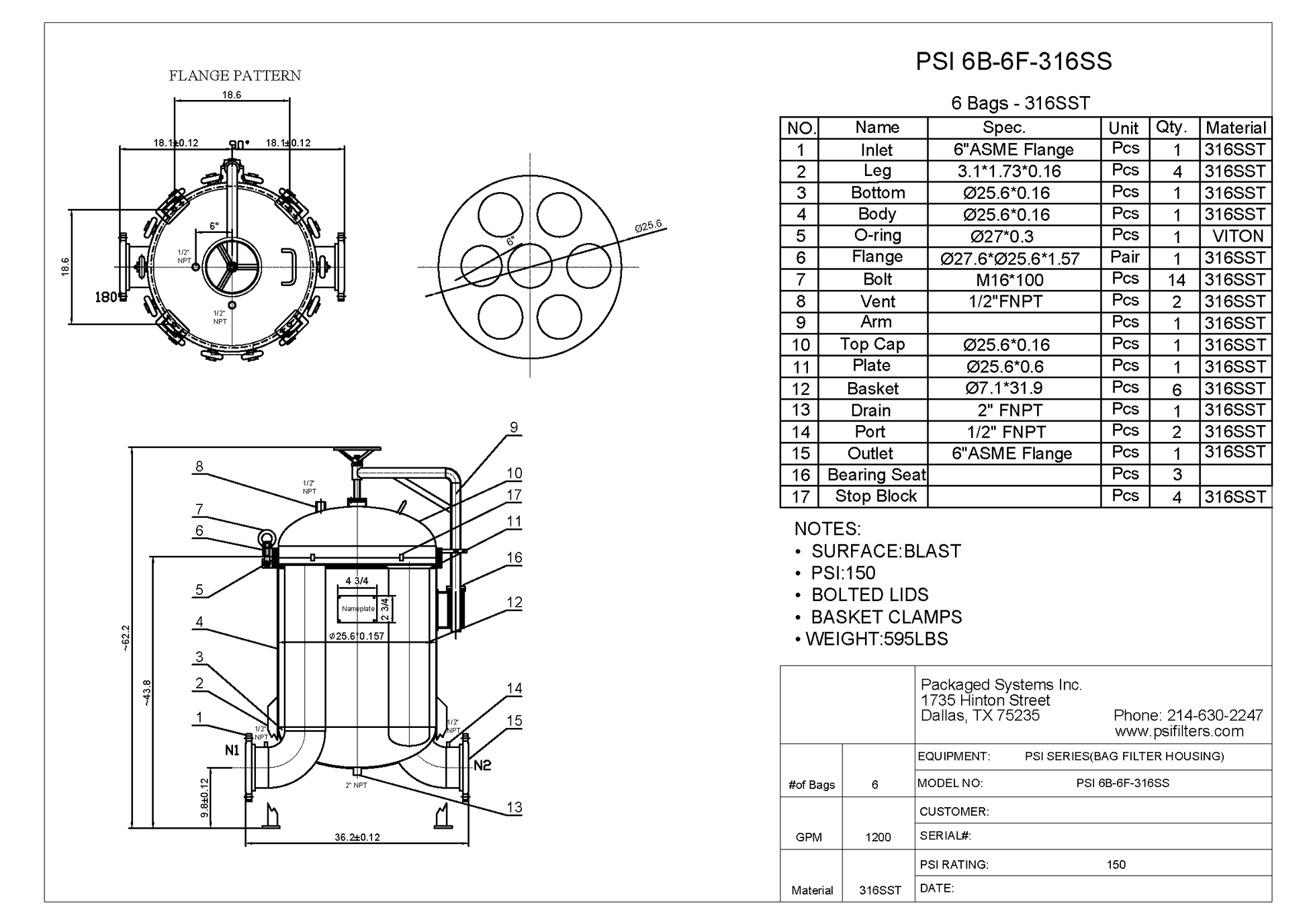

PSI Model 6B Multi-Bag Filter Housing (6 Bag)

The PSI 6-Bag Multi-Bag Filter Housing is a cost-effective, ready-to-ship solution for high-capacity liquid filtration. Available in 304SS for general service and 316SS for enhanced corrosion resistance, this housing is engineered to provide reliable, long-term performance in demanding industrial environments.

Built with a bolted lid design and heavy-duty basket clamps, this unit ensures secure sealing and easy bag changeouts. With a 6-bag configuration and a flow capacity of up to 1200 GPM, it is designed for operations where high throughput and minimal downtime are essential.

Key Features:

• Material Options: 304SS (standard) or 316SS (for corrosive applications)

• Capacity: Holds up to 6 standard #2 size filter bags

• Flow Rate: Rated for up to 1200 GPM

• Pressure Rating: 150 PSI

• Connections: 6" ASME flanged inlet/outlet, 2" FNPT drain, ½" FNPT ports, ½" vent

• Construction: Bolted lid with basket clamps for a secure seal

• Surface Finish: Blast finish for durability

• Weight: 595 lbs

Typical Applications:

• Water and wastewater treatment

• Chemicals and petrochemicals

• Food & beverage processing

• Paints, coatings, and adhesives

• Industrial process liquids
