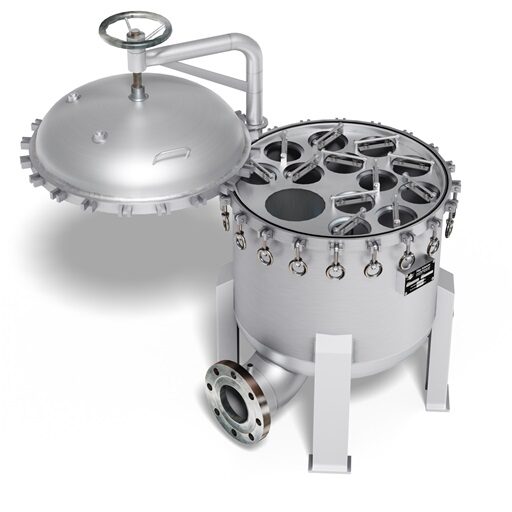

PSI Model 12B Multi-Bag Filter Housing (12 Bag)

The PSI 12-Bag Multi-Bag Filter Housing is designed for high-volume liquid filtration where maximum throughput and efficiency are required. Built exclusively from 304 stainless steel, this housing provides a cost-effective, ready-to-ship solution for demanding industrial applications.

Featuring a bolted lid design with heavy-duty basket clamps, this unit ensures a secure seal and reliable operation. With a 12-bag configuration and a flow capacity of up to 2400 GPM, it is ideal for large-scale systems needing continuous performance and reduced downtime.

Key Features

• Material: 304 stainless steel

• Capacity: 12 × #2 size bags (Ø7.1" × 31.9")

• Flow Rate: Up to 2400 GPM

• Pressure Rating: 150 PSI

• Connections: 10" ASME flanged inlet/outlet, 2" FNPT drain, ½" FNPT ports, ½" vent

• Construction: Bolted lid with basket clamps; blast surface finish

• Weight: ~1100 lbs

Typical Applications

• Large-scale water and wastewater treatment

• Bulk chemical and petrochemical processing

• Food & beverage production

• Paints, coatings, and adhesives

• Industrial process fluids
