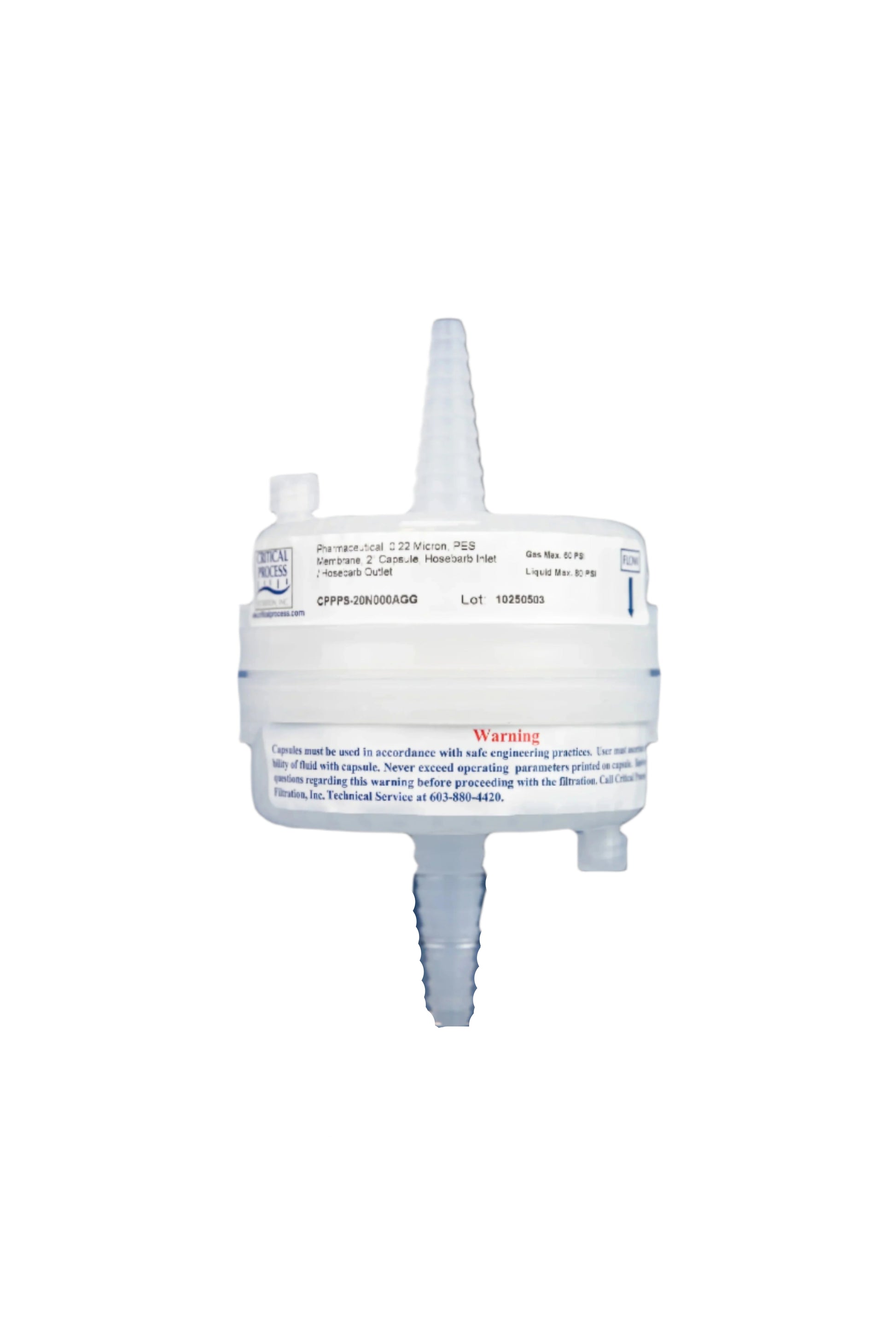

2 Inch Pharmaceutical Grade Fiberglass Filter Capsule (PGDXFGC)

USA Flag Made in the USA

Product description

Click here for more information

The PGDXFGC Capsule Filter uses pleated fiberglass depth media to deliver excellent clarification and prefiltration performance in aqueous applications with moderate to high particle loads. Rated for 99% retention efficiency, PGDX capsules offer high flow, long service life, and are manufactured to ensure fiber-free effluent.

With low extractables and conformance to USP <643>/<645> and Class VI standards, PGDX is ideal for bioprocessing and pharmaceutical fluid streams requiring high-purity filtration.

Key Features:

• Fiberglass Depth Media: High retention, high capacity, and fast flow
• 99% Retention Efficiency: Effective particulate control at rated micron
• Low Extractables: Preserves fluid purity across processes
• TOC & Conductivity Compliant: Meets USP <643>/<645> after proper flushing
• FDA & EC Compliant: Suitable for repeated food contact

Performance Parameters:

• Max Operating Temp (Water): 110 °F at 30 psid (43 °C at 2.07 bar)
• Forward Pressure Limit: 80 psid at 68 °F
• Reverse Pressure Limit: 50 psid at 68 °F
• Recommended Changeout: 35 psid

Sterilization & Cleaning:

• Autoclave: 250 °F (121 °C), 30 min, 25+ cycles
• Inline Steam: 275 °F (135 °C), 30 min
• Hot Water: 194 °F (90 °C), 30 min, max 3 psid forward
• Compatible with H₂O₂, peracetic acid, bleach, etc.

Filtration Area (Nominal):

• 2" – 0.8 ft² (0.08 m²)
• 5" – 2.3 ft² (0.22 m²)
• 10" – 5.0 ft² (0.46 m²)
• 20" – 10.0 ft² (0.92 m²)
• 30" – 15.0 ft² (1.38 m²)
• 40" – 20.0 ft² (1.84 m²)

Construction Materials:

• Filtration Media: Pleated fiberglass depth media
• Support Layers & Housing: Polyester and polypropylene
• Sealing Method: Thermal bonding

Typical Applications:

• Intermediates
• Buffers & Growth Media
• Bulk Pharmaceutical Chemicals
• SVPs & LVPs
• Water for Injection (WFI)
• General Water Purification
