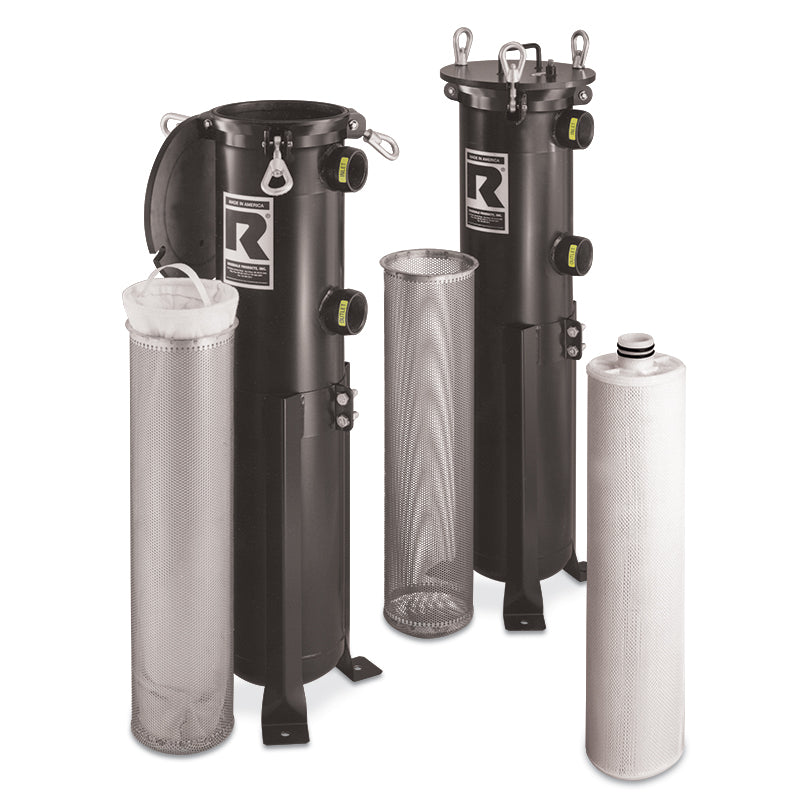

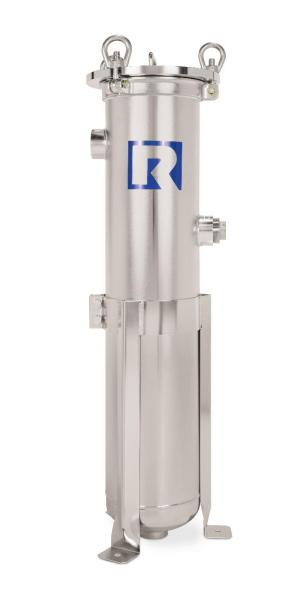

Rosedale Model NCO 8-30 Uni-Style Bag Filter Housing

The Rosedale Products Model 8-30 NCO industrial filter housing is a high-capacity, single-bag filtration vessel designed for industrial liquid filtration at moderate to high flow rates. It accommodates one Size #2 filter bag and is commonly used in chemical processing, coatings, water treatment, and general industrial filtration applications where reliable performance and cost efficiency are important.

The Model 8-30 NCO features a standardized uni-style outlet configuration, allowing customers to achieve a more competitive price point while maintaining Rosedale’s proven filtration performance and construction quality.

Why Choose the Rosedale 8-30 NCO Filter Housing?

• Supports high flow rates using a single Size #2 filter bag

• Standardized uni-style outlet design reduces cost without compromising performance

• Maintains Rosedale build quality in a more price-competitive configuration

• Simple cover design allows fast filter bag change-outs and reduced downtime

• Compatible with standard industry Size #2 filter bags across a wide range of micron ratings

• Suitable for continuous or batch filtration processes

Technical Overview

• Maximum operating pressure: 150 PSI

• Maximum flow rate: up to 220 GPM

• Typical operating flow range: 50–220 GPM, dependent on bag micron rating, fluid viscosity, and differential pressure

• Filter bag size: Size #2

• Construction materials (selectable): Carbon Steel, 304 Stainless Steel

• Outlet configuration: Standardized uni-style outlet

• Standard basket: Filter bag basket with 9/64" perforations (PB)

• Includes: Housing, filter basket, O-rings, and support legs

Additional Information

The Rosedale Model 8-30 NCO is ideal for applications requiring dependable filtration performance with a more cost-controlled system design. By standardizing the outlet configuration, the NCO model delivers a strong balance between performance, durability, and price—making it an attractive option for facilities seeking Rosedale quality with improved budget efficiency.

View this informational PDF to learn more.

• Carbon Steel: Cost-effective choice for non-corrosive liquids and general industrial applications
• Aluminum: Lightweight option suitable for non-corrosive fluids where reduced weight, easier handling, or lower installation loads are desired
• 304 Stainless Steel: Suitable for mildly corrosive fluids and applications requiring improved corrosion resistance
• 316 Stainless Steel: Recommended for more aggressive or chloride-bearing fluids and demanding chemical environments
• Polypropylene (PP): Corrosion-resistant, suitable for acids, bases, and general chemical service
• PVDF: Premium material offering superior chemical resistance than polypropylene for aggressive chemical environments

• Chemical processing and fluid transfer

• Paints, coatings, inks, and resin filtration

• Industrial water and wastewater filtration

• Pre-filtration ahead of cartridge or membrane systems

• General process liquid filtration in manufacturing environments


Maximum at 150 PSI:

• Carbon Steel — up to 400°F
• 304 Stainless Steel — up to 400°F
• 316 Stainless Steel — up to 400°F
• Aluminum — up to 250°F

Maximum at 100 PSI:

• PVC — up to 150°F
• Polypropylene — up to 150°F
