Rosedale Model LCO 8-30 Clamp Lid Filter Housing

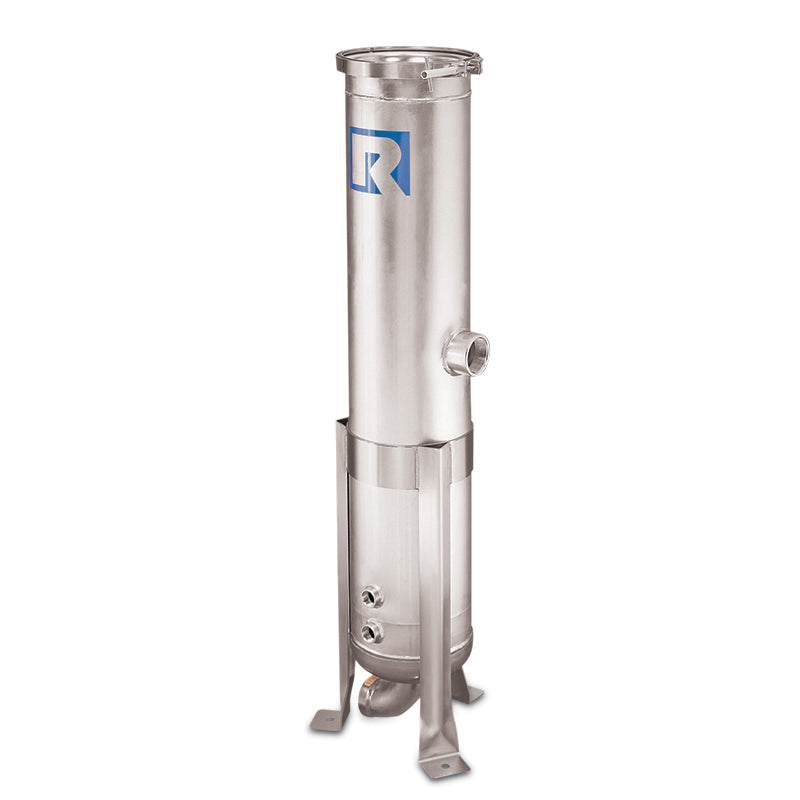

The Rosedale Products Model LCO 8-30 filter housing is a clamp-top, single-bag filtration vessel designed for industrial liquid filtration applications requiring fast service access and low operating pressures. It accommodates one Size #12 filter bag and is commonly used in CNC coolant filtration, metalworking fluid systems, and other industrial processes where rapid change-outs and system uptime are priorities.

Unlike traditional eyebolt-style housings, the LCO 8-30 features a clamp-top closure that allows quicker and more efficient bag replacement. Rated for applications up to 125 PSI, the LCO series is selected when high-pressure filtration is not required but durability and serviceability remain critical. All LCO housings utilize a uni-style outlet configuration for simplified piping integration.

Why Choose the Rosedale LCO 8-30 Filter Housing?

• Clamp-top closure allows faster bag change-outs compared to eyebolt-style housings

• Designed for low pressure systems rated up to 125 PSI

• Supports up to 100 GPM depending on bag selection and process conditions

• Utilizes Size #12 filter bags specific to the LCO design

• Uni-style outlet configuration simplifies piping arrangements

• Available in Carbon Steel or 304 Stainless Steel construction

Technical Overview

• Maximum operating pressure: 125 PSI

• Maximum flow rate: up to 100 GPM

• Typical operating flow range: 25–100 GPM, dependent on bag micron rating, fluid viscosity, and differential pressure

• Filter bag size: Size #12 (LCO configuration)

• Construction materials: Carbon Steel, 304 Stainless Steel

• Closure style: Clamp-top

• Outlet configuration: Uni-style

• Standard basket: Perforated filter bag basket

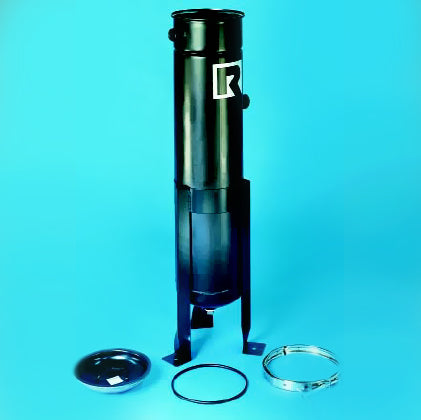

• Includes: Housing, filter basket, O-ring, and support legs (as applicable)

View this informational PDF to learn more.

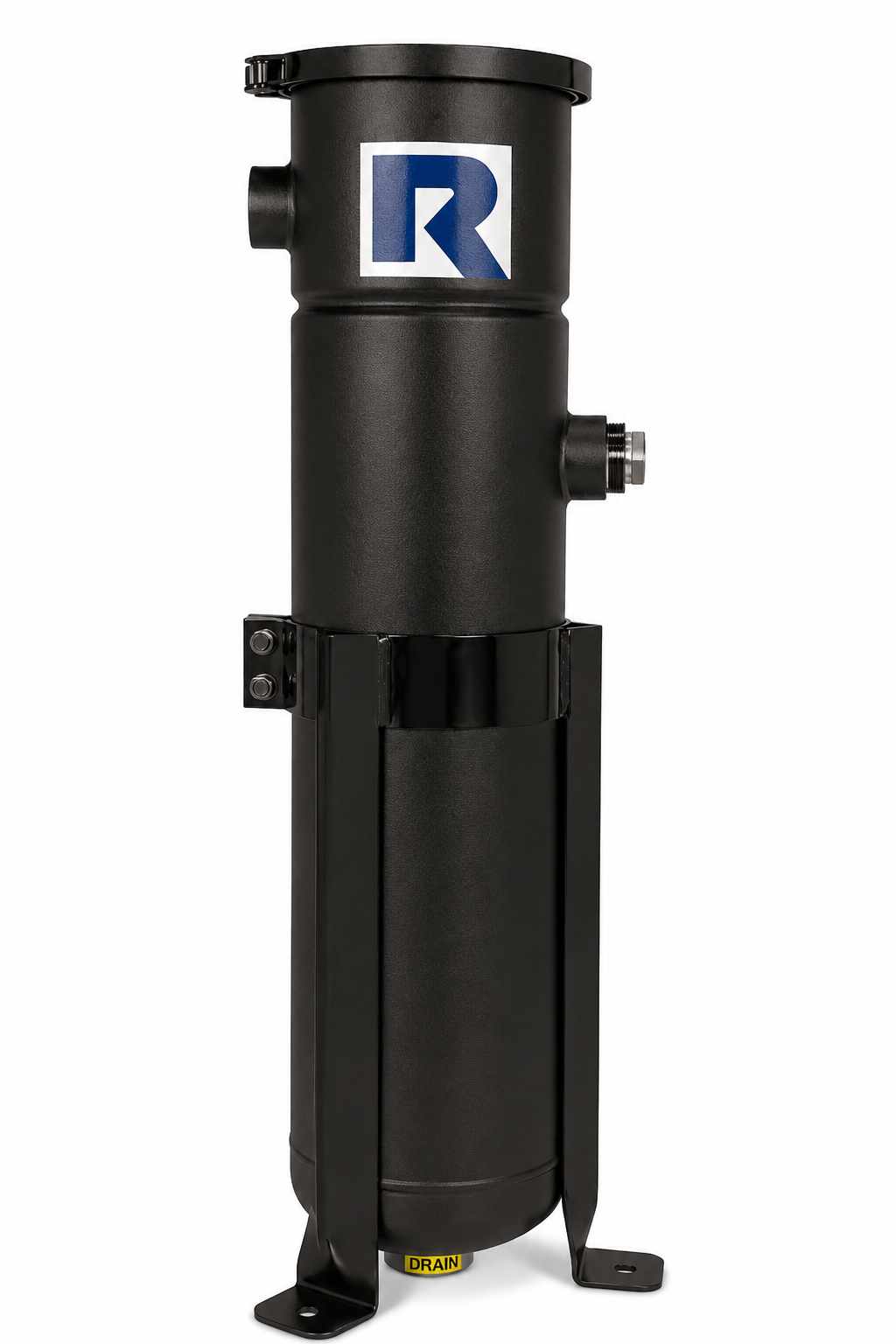

• Carbon Steel: Cost-effective choice for non-corrosive liquids and general industrial applications

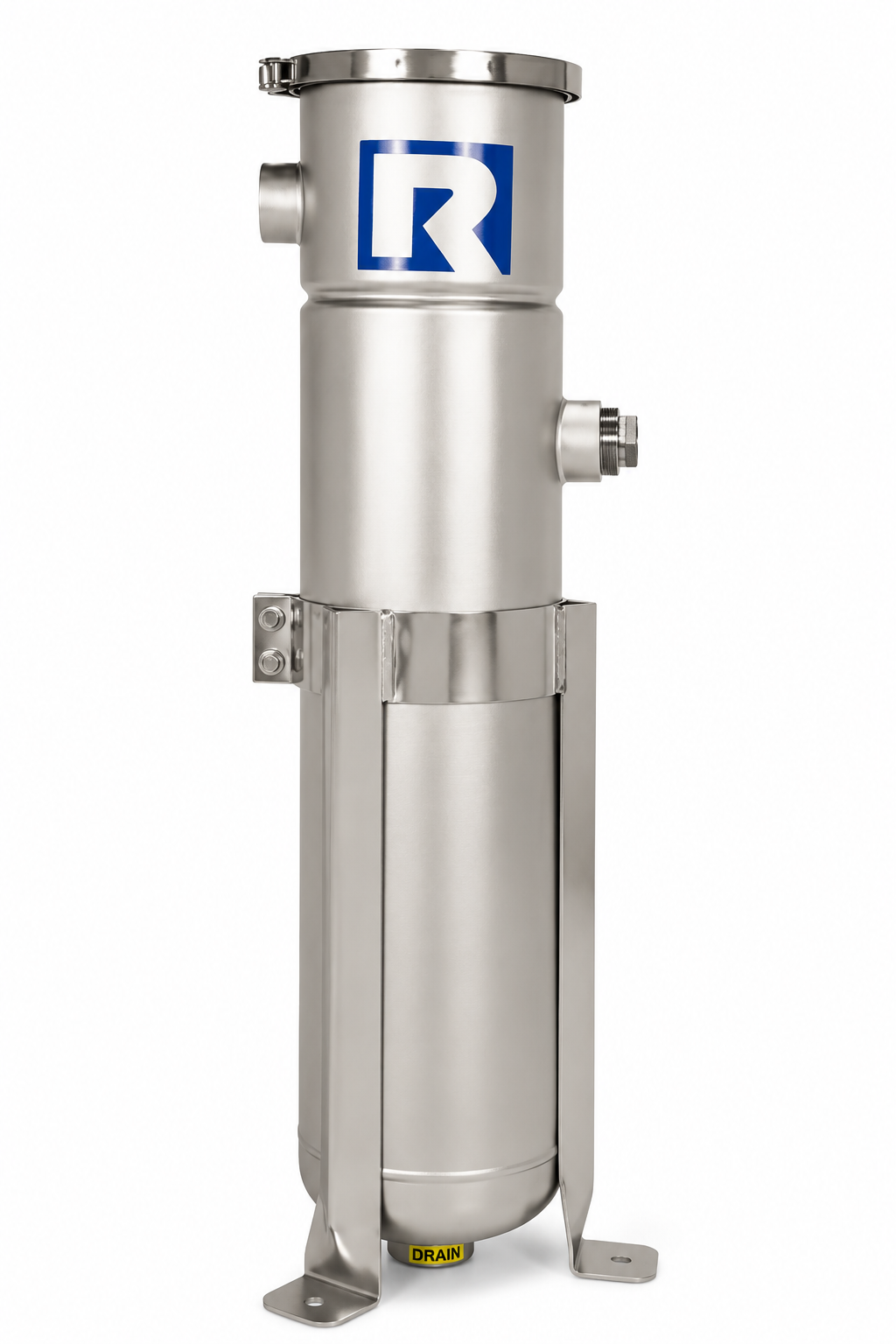

• 304 Stainless Steel: Suitable for mildly corrosive fluids and applications requiring improved corrosion resistance
• 316 Stainless Steel: Recommended for more aggressive or chloride-bearing fluids and demanding chemical environments

• Chemical processing and fluid transfer

• Paints, coatings, inks, and resin filtration

• Industrial water and wastewater filtration

• Pre-filtration ahead of cartridge or membrane systems

• General process liquid filtration in manufacturing environments
• CNC Coolant Filtration
• Low Pressure Filtration


Model LCO 8 & 6 (Rated at a max of 125 PSI):

• Carbon Steel — up to 400°F
• 304 Stainless Steel — up to 400°F
• 316 Stainless Steel — up to 400°F

Model LCO 4 (Rated at a max of 200 PSI):

• Carbon Steel — up to 400°F
• 304 Stainless Steel — up to 400°F
• 316 Stainless Steel — up to 400°F
