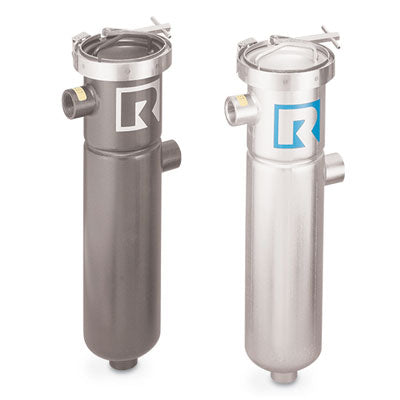

Rosedale Model LCO 4-6 Clamp Lid Filter Housing

The Rosedale Products Model LCO 4-6 filter housing is a compact, clamp-top, single-bag filtration vessel designed for industrial liquid filtration applications requiring quick service access in a minimal footprint. It accommodates one Size #3 filter bag and is commonly used in CNC coolant filtration, metalworking fluids, and other low-flow industrial systems where space constraints and maintenance efficiency are critical.

The LCO 4-6 is designed for low-flow applications and supports flow rates up to 25 GPM, depending on bag selection and process conditions. Its clamp-top closure system allows faster bag change-outs compared to traditional eyebolt housings. All LCO housings utilize a uni-style outlet configuration for simplified piping integration.

Why Choose the Rosedale LCO 4-6 Filter Housing?

• Ultra-compact design for tight installation spaces

• Supports up to 25 GPM depending on process conditions

• Clamp-top closure allows faster and more efficient bag change-outs

• Designed for low-flow industrial systems

• Utilizes Size #3 filter bags

• Uni-style outlet configuration

• Available in Carbon Steel, 304 Stainless Steel, or 316 Stainless Steel construction

Technical Overview

• Maximum flow rate: up to 25 GPM

• Typical operating flow range: 5–25 GPM, dependent on bag micron rating, fluid viscosity, and differential pressure

• Filter bag size: Size #3

• Construction materials: Carbon Steel, 304 Stainless Steel, 316 Stainless Steel

• Closure style: Clamp-top

• Outlet configuration: Uni-style

• Standard basket: Perforated filter bag basket

• Includes: Housing, filter basket, and O-ring

Additional Information

The Rosedale Model LCO 4-6 is engineered for compact industrial systems operating at lower flow rates where service speed and installation footprint are primary considerations. Its clamp-top design reduces downtime in applications that require frequent bag changes while maintaining the durability expected from Rosedale construction.

Download More Information

• Carbon Steel: Cost-effective choice for non-corrosive liquids and general industrial applications
• 304 Stainless Steel: Suitable for mildly corrosive fluids and applications requiring improved corrosion resistance
• 316 Stainless Steel: Recommended for more aggressive or chloride-bearing fluids and demanding chemical environments

• Chemical processing and fluid transfer

• Paints, coatings, inks, and resin filtration

• Industrial water and wastewater filtration

• Pre-filtration ahead of cartridge or membrane systems

• General process liquid filtration in manufacturing environments
• CNC Coolant Filtration
• Low Pressure Filtration


Model LCO 8 & 6 (Rated at a max of 125 PSI):

• Carbon Steel — up to 400°F
• 304 Stainless Steel — up to 400°F
• 316 Stainless Steel — up to 400°F

Model LCO 4 (Rated at a max of 200 PSI):

• Carbon Steel — up to 400°F
• 304 Stainless Steel — up to 400°F
• 316 Stainless Steel — up to 400°F
