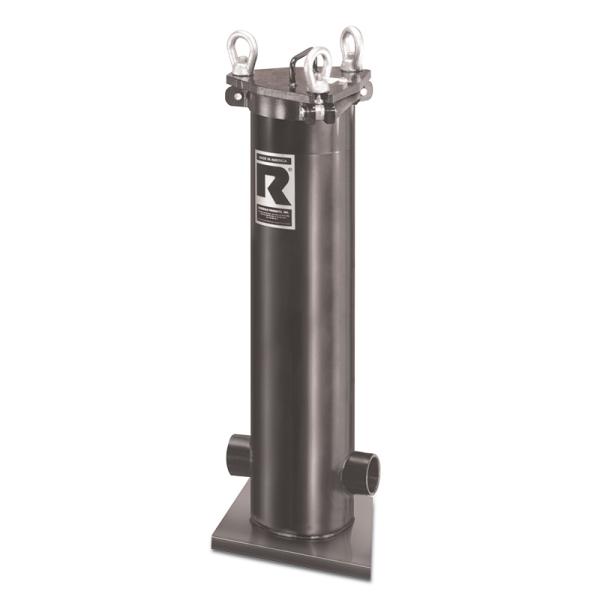

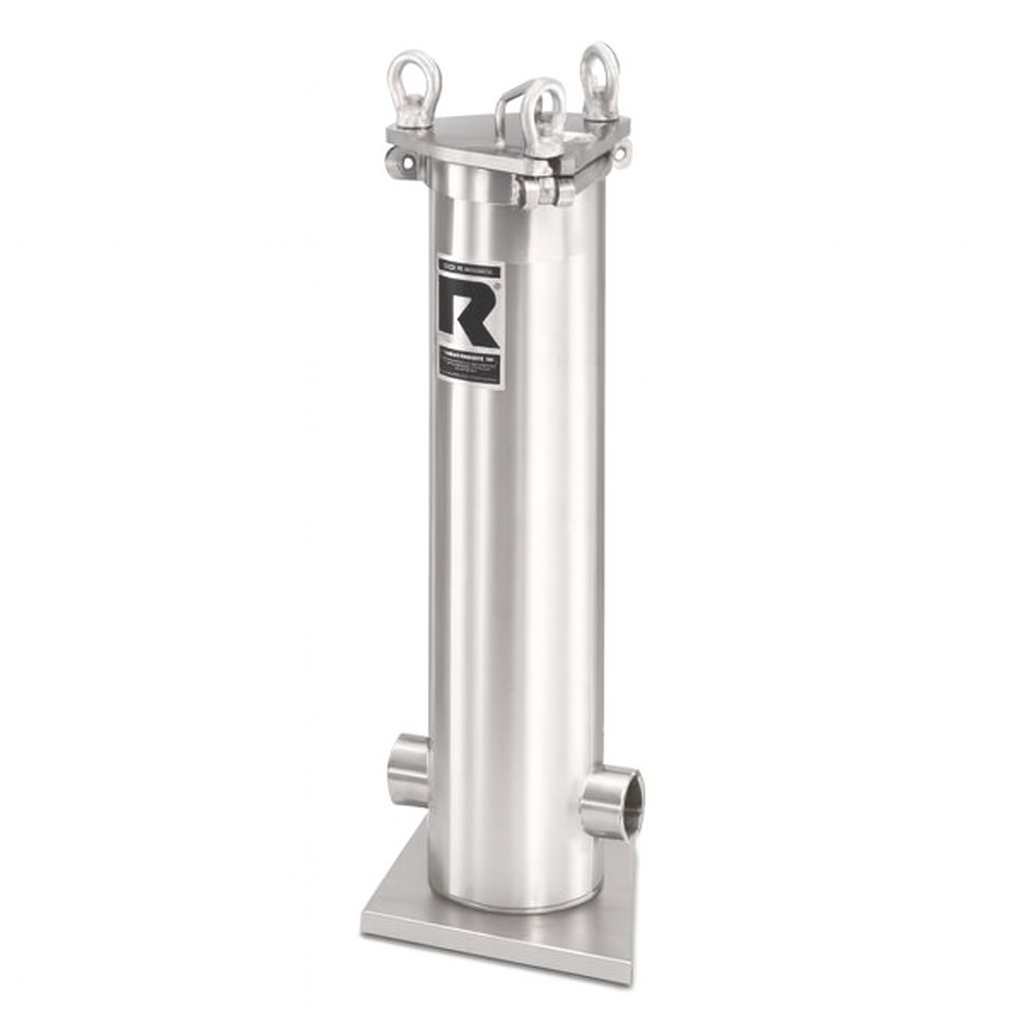

Rosedale Model 7180 Hydraulic Lube-Oil Filter

Click here for more info

The Model 7180 Series Hydraulic Lube-Oil Filter Housing is designed for efficient oil reclamation and maintenance operations. Built for reliability and ease of service, this housing provides dependable performance in demanding industrial applications while keeping your filtration process cost-effective.

Key Features

• Accepts single 718 or 736 style filter cartridges

• Flow rates up to 100 GPM

• Side-in/side-out piping configuration with 1", 1-½", or 2" NPT connections

• Eyebolt cover design for quick cartridge change-out

• Electropolished finish for smooth, easy-to-clean surfaces

• Rated for 150 psi operating pressure

• O-ring sealed cover to prevent leakage

• Available in carbon steel, 304 stainless steel, or 316 stainless steel

Performance Parameters

• Flow capacity: up to 100 GPM (based on housing only; fluid viscosity, filter type, and dirt loading should be considered)

• Pressure rating: 150 psi

• Cartridge ratings: 1µ absolute to 100µ nominal

Construction Materials

• Housing: Carbon steel, 304 SS, or 316 SS

• Cover seal options: Buna-N, EPDM, or Viton® fluoroelastomer

• Electropolished internal surfaces for corrosion resistance and cleanability

Applications

• Bulk oil handling

• Lubrication oils

• Hydraulic oils

• Process liquids

• Cutting oils and coolants

• Quench oils

• Rolling mill oils

• Fuels and solvents
