Rosedale Model 42 Standard Multi-Bag Housing (17 bag)

View this informational PDF to learn more.

The Rosedale Model 42 Standard Multi-Bag Filter Housing is a heavy-duty, high-capacity vessel designed for large industrial liquid filtration systems. With 17 Size #2 filter bags and 74.8 sq. ft. of total filtering area, the Model 42 provides significantly greater flow and contaminant-holding capacity than smaller multi-bag housings while consolidating filtration into a single vessel.

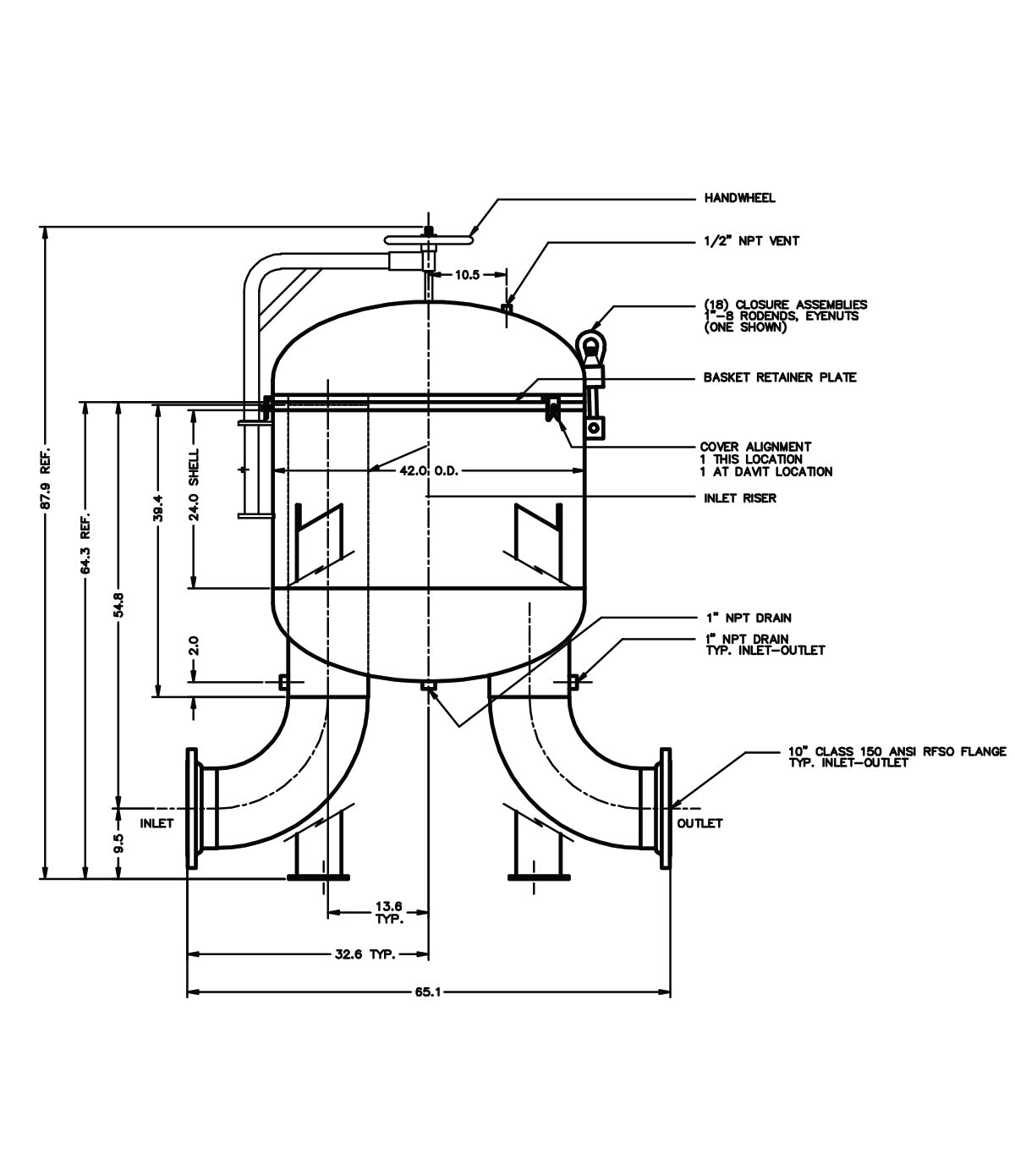

The standard housing design uses Rosedale’s davit arm and handwheel cover system to assist with cover removal and provide full access to the bag chamber. Each filter bag is supported by a heavy-duty 30" deep basket with 9/64" perforations, providing secure support throughout operation.

Why Choose the Rosedale Model 42?

• 17-bag capacity for high-volume industrial filtration

• Uses standard Size #2 filter bags

• 74.8 sq. ft. total filtering area

• 1,700 GPM nominal housing flow rate

• 150 PSI standard pressure rating

• Available in carbon steel, 304 stainless steel, or 316 stainless steel

• Flanged inlet and outlet connections with multiple pipe sizes available

• Heavy-duty 9/64" perforated filter bag support baskets

• Davit arm and handwheel assist with cover handling

• Machined cover gasket groove provides positive O-ring sealing

• Vent, drain, and gauge connections provided for servicing and system operation

Technical Overview

Housing: Rosedale Model 42 Standard Multi-Bag
Filter Capacity: 17 × Size #2 filter bags
Basket Depth: 30"
Filtering Area: 74.8 sq. ft.
Nominal Flow Rate: 1,700 GPM
Pressure Rating: 150 PSI
Materials: Carbon Steel, 304 Stainless Steel, or 316 Stainless Steel
Connections: Flanged inlet and outlet; connection size varies by configuration
Basket: Heavy-duty 9/64" perforated filter bag support basket
Cover Design: Standard davit arm with handwheel
Cover Sealing: Machined gasket groove with O-ring seal

Flow & Sizing

The 1,700 GPM rating is a nominal housing flow rate based on water at approximately 1 PSI clean-housing pressure drop. Actual system flow and pressure drop depend heavily on inlet/outlet size, fluid viscosity, selected filter bag media and micron rating, and expected contaminant loading.

Rosedale recommends considering both fluid velocity and pressure drop when selecting a housing. For critical applications, PSI Filters can help confirm the appropriate Model 42 connection size and filter bag configuration for the required flow rate.

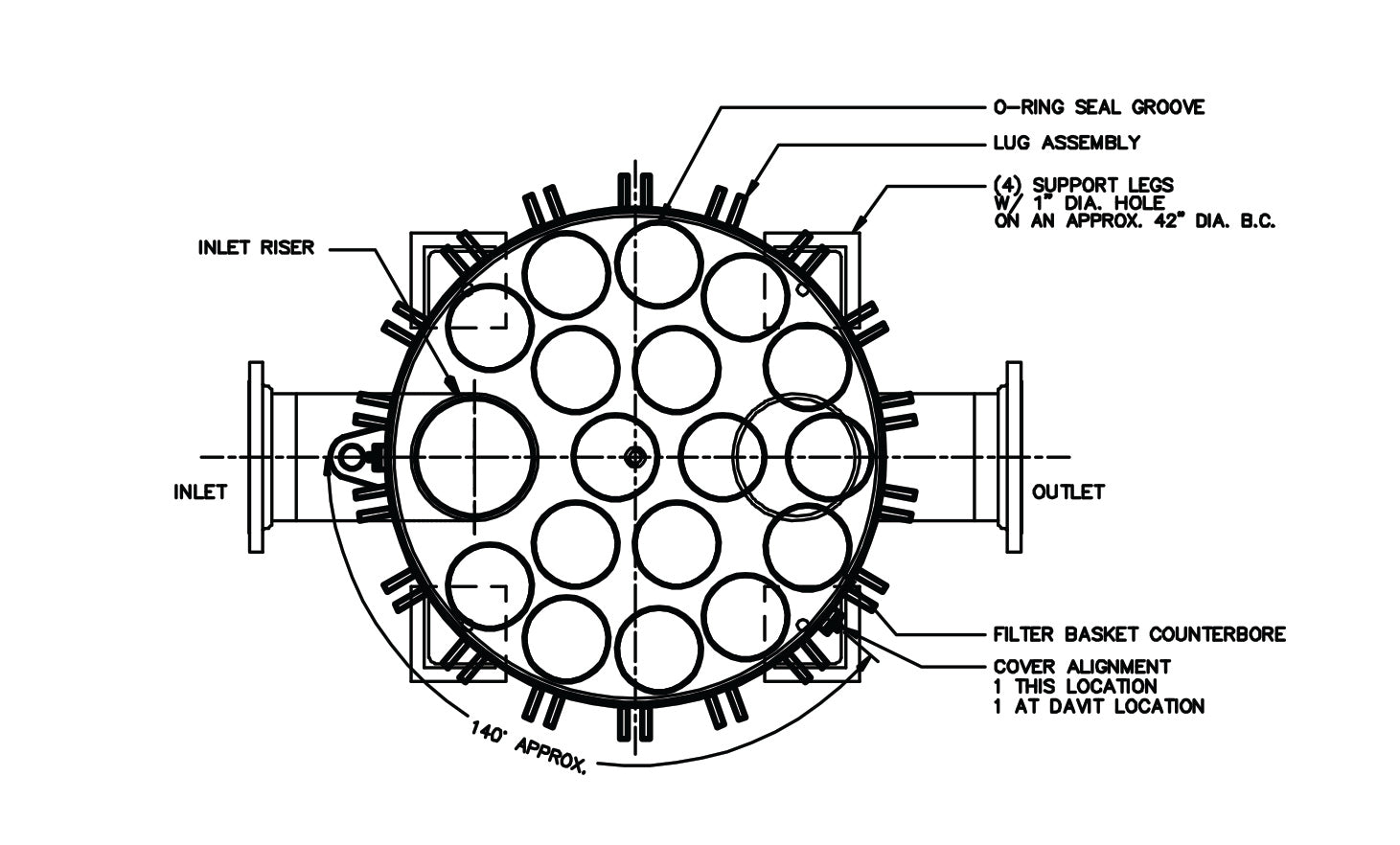

Filter Bag & Basket Configuration

The Model 42 is configured for 17 standard Size #2 filter bags supported by individual perforated baskets. Standard filter-bag baskets use 9/64" diameter perforations and are designed to support the bags while allowing unrestricted flow through the filter media.
