Rosedale Model 36 Standard Multi-Bag Housing (12 bag)

View this informational PDF to learn more.

The Rosedale Model 36 Standard Multi-Bag Filter Housing is a heavy-duty industrial vessel designed for high-flow liquid filtration systems requiring greater capacity than conventional single- or multi-bag housings. With 12 Size #2 filter bags and 52.8 sq. ft. of total filtering area, the Model 36 provides substantial dirt-holding capacity while consolidating filtration into a single serviceable vessel.

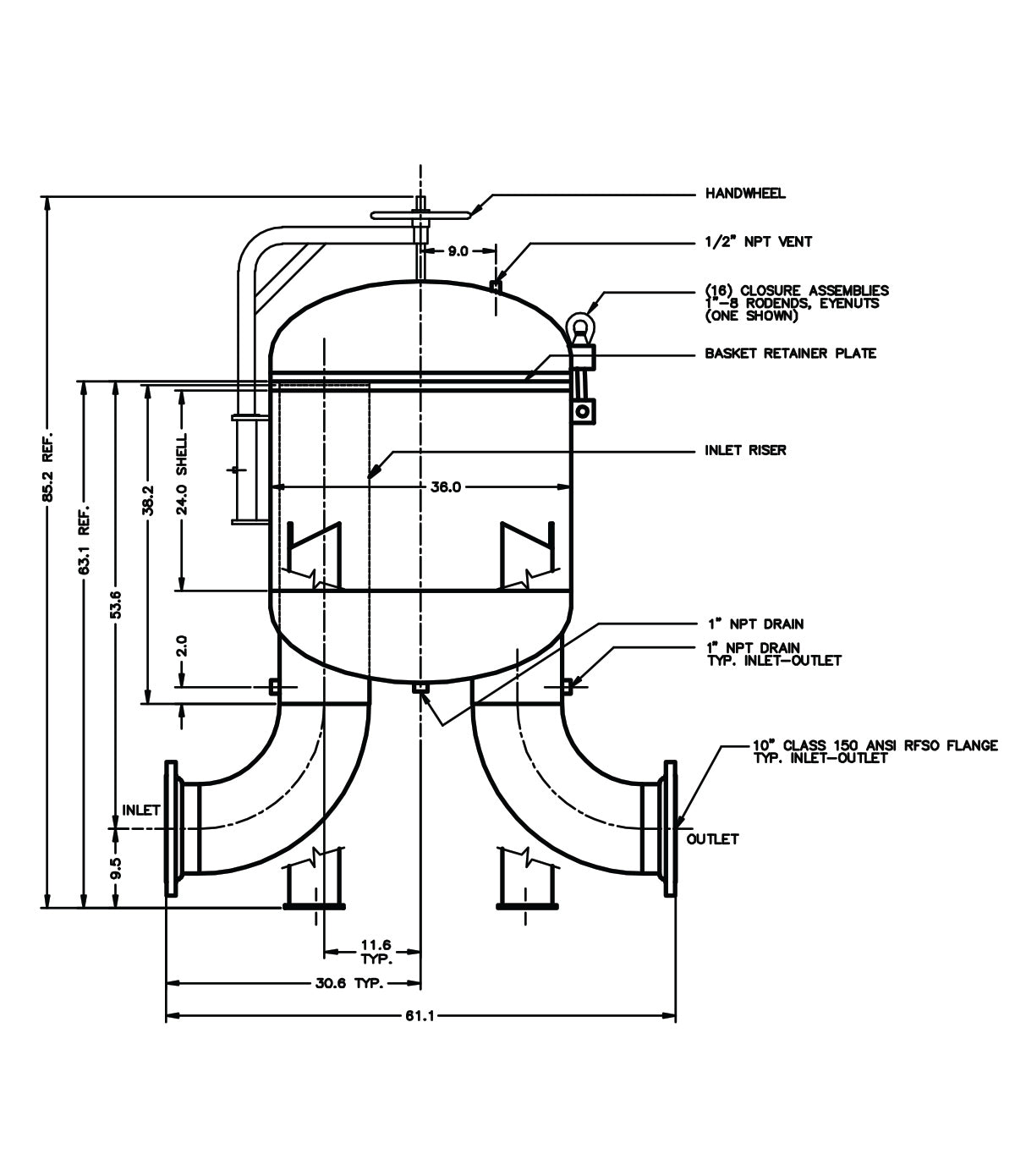

Rosedale’s standard housing design uses a davit arm and handwheel to assist with cover removal and provide convenient access to the bag chamber. Each filter bag is supported by a heavy-duty 30" deep basket with 9/64" perforations, providing reliable bag support throughout operation.

Why Choose the Rosedale Model 36?

• 12-bag capacity for high-flow industrial filtration

• Uses standard Size #2 filter bags

• 52.8 sq. ft. total filtering area

• 1,200 GPM nominal housing flow rate

• 150 PSI standard pressure rating

• Available in carbon steel, 304 stainless steel, or 316 stainless steel

• Flanged inlet and outlet connections

• Heavy-duty 9/64" perforated filter bag support baskets

• Standard davit arm and handwheel assist with cover handling

• Machined cover gasket groove provides positive O-ring sealing

• Vent, drain, and gauge connections for system operation and servicing

Technical Overview

Housing: Rosedale Model 36 Standard Multi-Bag
Filter Capacity: 12 × Size #2 filter bags
Basket Depth: 30"
Filtering Area: 52.8 sq. ft.
Nominal Flow Rate: 1,200 GPM
Pressure Rating: 150 PSI
Materials: Carbon Steel, 304 Stainless Steel, or 316 Stainless Steel
Connections: Flanged inlet and outlet; connection size varies by configuration
Basket: Heavy-duty 9/64" perforated filter bag support basket
Cover Design: Standard davit arm with handwheel
Cover Sealing: Machined gasket groove with O-ring seal

Flow & Sizing

The 1,200 GPM rating is a nominal housing flow rate based on water at approximately 1 PSI clean-housing pressure drop. Actual system flow and pressure drop depend on inlet/outlet size, fluid viscosity, filter bag media, micron rating, and expected contaminant loading.

Rosedale notes that housing pressure drop is primarily governed by the inlet and outlet connection size rather than the vessel itself. Fluid viscosity, filter media, and dirt loading should therefore be considered when sizing the housing for a specific process.

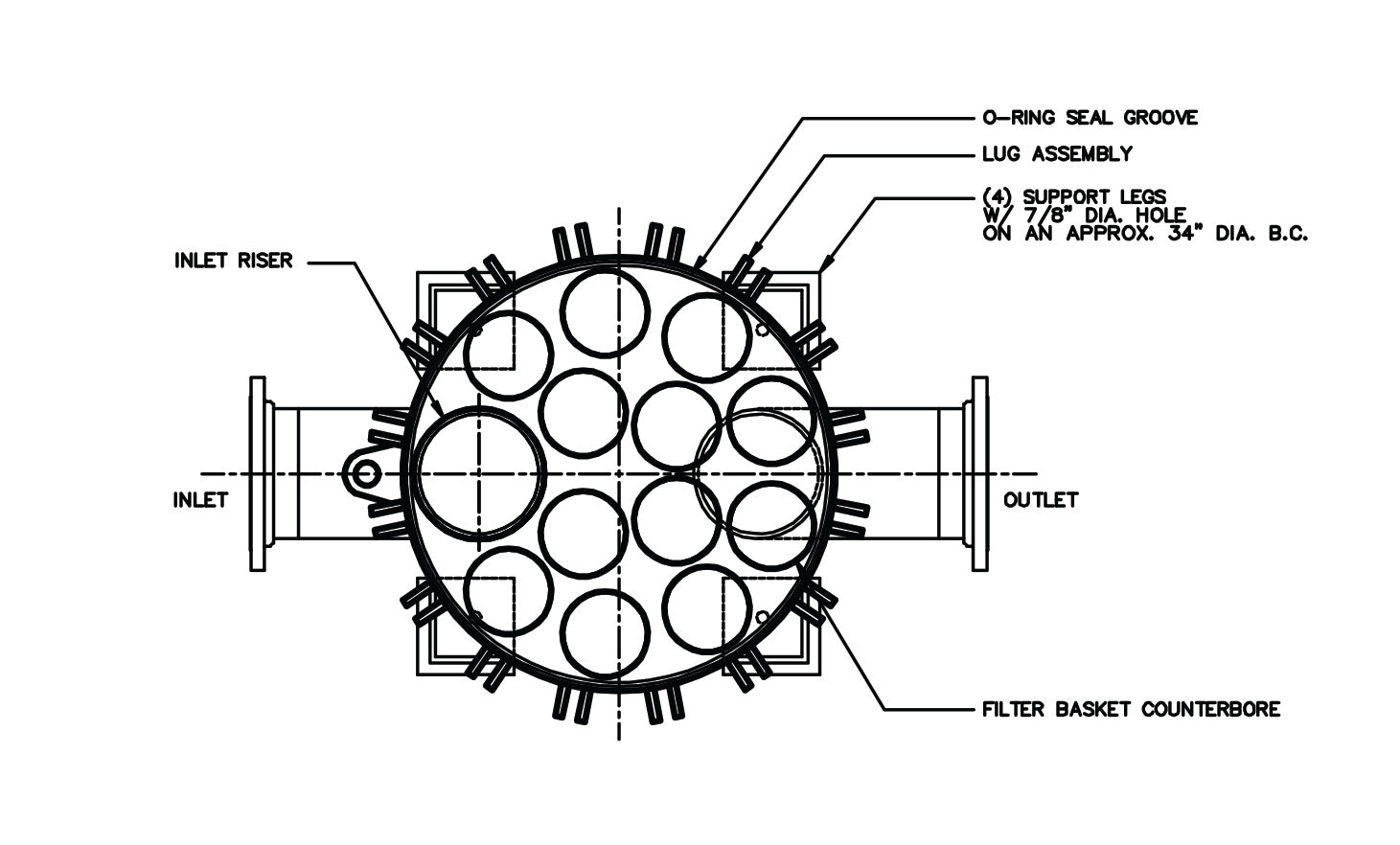

Filter Bag & Basket Configuration

The Model 36 is configured for 12 standard Size #2 filter bags, each supported by an individual 30" deep perforated basket. Standard filter-bag baskets use 9/64" diameter perforations with approximately 51% open area, providing strong bag support while maintaining high flow through the vessel.

Typical Applications

• Municipal and industrial water treatment

• Chemical and petrochemical processing

• Cooling and process water

• Paints, coatings, inks, adhesives, and resins

• Food and beverage processing

• High-volume manufacturing process liquids

• Bulk liquid clarification and particulate removal

Filter bags are sold separately. Contact PSI Filters for compatible Size #2 filter bags, replacement baskets, cover seals, or assistance selecting the correct flange size and housing configuration for your application.
