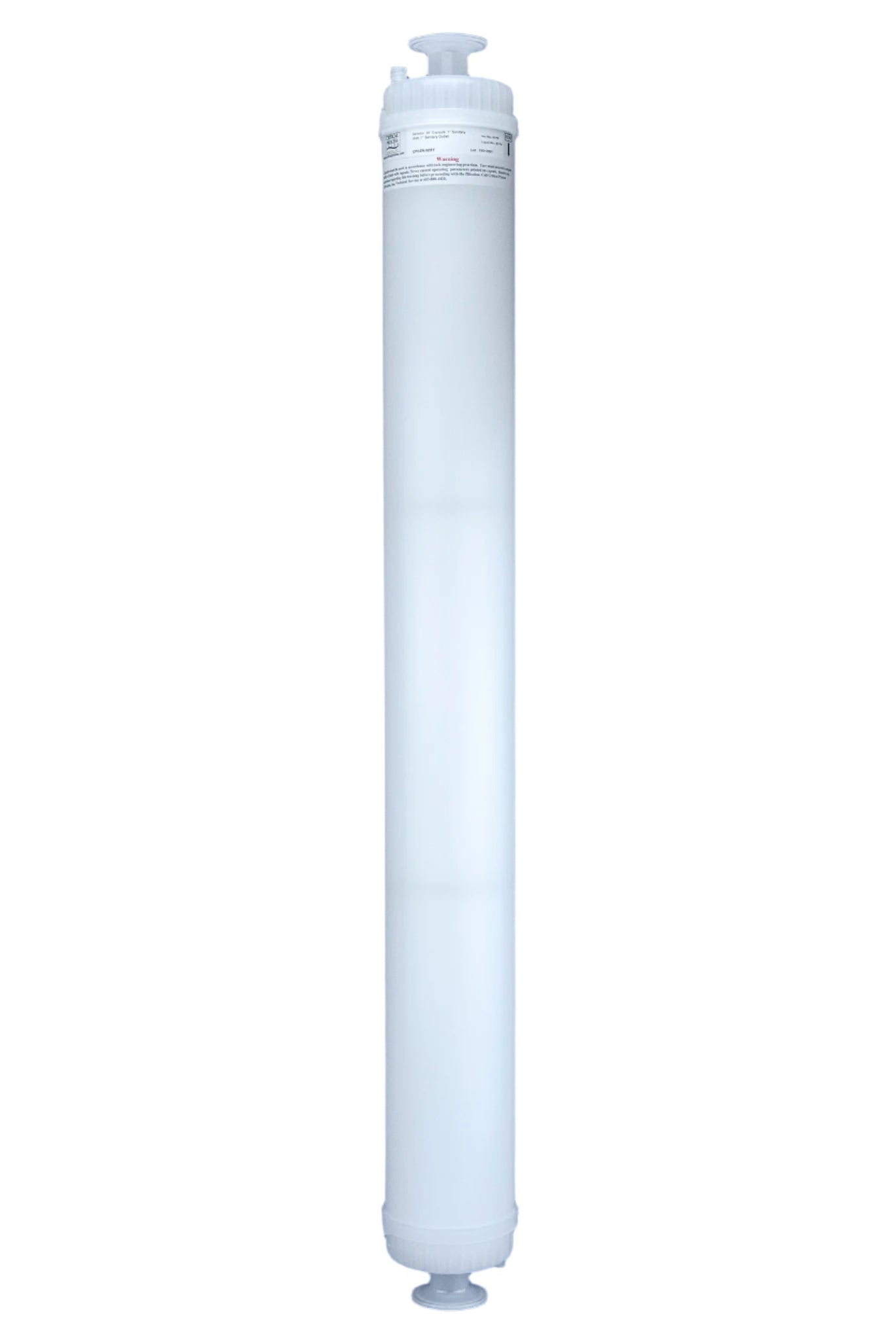

30 Inch General Grade Charged Nylon Filter Capsule (GNCXGGC)

Click here for more information

The GNCX Capsule Filter features a positively charged Nylon 6,6 membrane designed to target and remove negatively charged contaminants such as endotoxins and fine particles in aqueous and non-aqueous liquids. Part of the general service line, GNCX provides an economical and scalable solution for prefiltration or standalone use in less critical applications.

With broad chemical compatibility and high throughput, GNCX supports a wide range of industrial and chemical filtration processes while helping preserve the performance of downstream filters.

Key Features:

• Positively Charged Nylon 6,6 Membrane: Effective at capturing negatively charged contaminants
• General Service Value: Ideal for cost-sensitive applications
• FDA & EC Compliant: Safe for repeated food contact
• Broad Chemical Compatibility: Suitable for aqueous and non-aqueous solutions
• High Flow & Throughput: Efficient filtration for complex processes

Performance Parameters:

• Max Operating Temp (Water): 110 °F at 30 psid (43 °C at 2.07 bar)
• Forward Pressure Limit: 80 psid at 68 °F
• Reverse Pressure Limit: 50 psid at 68 °F
• Recommended Changeout: 35 psid

Sterilization & Cleaning:

• Autoclave: 250 °F (121 °C), 30 min, 25+ cycles
• Inline Steam: 275 °F (135 °C), 30 min
• Hot Water: 194 °F (90 °C), 30 min, max 3 psid forward
• Compatible with H₂O₂, peracetic acid, bleach, etc.

Construction Materials:

• Filtration Media: Positively charged Nylon 6,6 membrane with polyester support
• Support Cage & Housing: Polypropylene
• Sealing Method: Thermal bonding
• O-Rings: Buna, Viton® (FKM), EPDM, Silicone, FEP-encapsulated options

Typical Applications:

• Process water
• DI water
• Chemicals
• Solvents
• Inks and dyes
