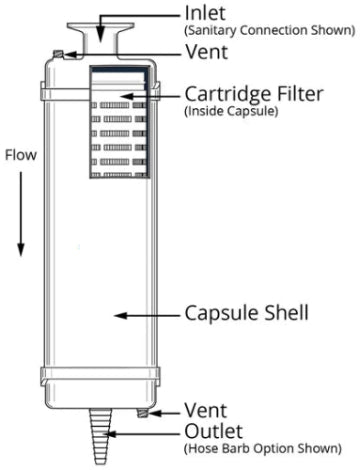

High Capacity Dual Layered Polyethersulfone Membrane Filter Capsule (General Purpose) - GCWPS

Click here for more information

The GCWPSX Capsule Filter is a general service, high-capacity PES membrane filter designed for economical clarification and fine particle removal in less critical applications. Available with either a single or dual layer of hydrophilic PES, GCWPSX provides high throughput and retention with low binding characteristics—ideal for reducing contaminants early in the process to extend the life of downstream filters.

Constructed using FDA- and EC-compliant materials, GCWPSX is a cost-effective choice for filtering aqueous liquids, including process water, chemicals, and cleaning solutions.

Key Features:

• Single or Dual Layer PES Membrane: Choose the retention level that fits your application
• Cost-Effective Performance: Reduces load on final filters
• Low Binding Characteristics: Ideal for fluids with adsorptive components
• FDA & EC Compliant: Safe for repeated food contact
• Scalable & Consistent: Identical construction across sizes

Performance Parameters:

• Max Operating Temp (Water): 110 °F at 30 psid (43 °C at 2.07 bar)
• Forward Pressure Limit: 80 psid at 68 °F
• Reverse Pressure Limit: 50 psid at 68 °F
• Recommended Changeout: 35 psid

Sterilization & Cleaning:

• Autoclave: 250 °F (121 °C), 30 min, 25+ cycles
• Inline Steam: 275 °F (135 °C), 30 min
• Hot Water: 194 °F (90 °C), 30 min, max 3 psid forward
• Compatible with H₂O₂, peracetic acid, bleach, etc.

Filtration Area (Nominal):

Single Layer:
• 2" – 1.1 ft² (0.11 m²)
• 5" – 3.1 ft² (0.29 m²)
• 10" – 6.7 ft² (0.62 m²)
• 20" – 13.4 ft² (1.24 m²)
• 30" – 20.1 ft² (1.86 m²)
• 40" – 26.8 ft² (2.48 m²)

Dual Layer:
• 2" – 0.9 ft² (0.08 m²)
• 5" – 2.5 ft² (0.23 m²)
• 10" – 5.3 ft² (0.49 m²)
• 20" – 10.6 ft² (0.98 m²)
• 30" – 15.9 ft² (1.47 m²)
• 40" – 21.2 ft² (1.96 m²)

Construction Materials:

• Filtration Media: Single or dual layer PES membrane with polyester support
• Support Cage & Core: Polypropylene
• Sealing Method: Thermal bonding
• O-Rings: Buna, Viton® (FKM), EPDM, Silicone, FEP-encapsulated options

Typical Applications:

• Process water
• DI water
• Clean-in-place (CIP) solutions
• Chemicals
• Inks and dyes
