Filter Tech Model 6-18 Filter Housing

Click here for more information

The Model 6–18 Bag Filter Housing is engineered for mid-volume liquid filtration, offering reliable performance at flow rates up to 100 GPM. With an 18-inch basket depth, this housing strikes the perfect balance between capacity and footprint, making it ideal for industrial, commercial, and process filtration applications.

Built from your choice of carbon steel, 304 stainless steel, or aluminum. Its tool-free eye bolt cover and adjustable-height legs make maintenance fast and hassle-free, while the O-ring sealed lid ensures a secure, leak-free seal under pressure.

Key Features
• 18" basket depth (Size #8 filter bags)
• Handles flow rates up to 100 GPM
• Available in carbon steel, 304 stainless steel, or aluminum
• 150 PSI pressure rating
• Tool-free cover removal with O-ring seal
• Standard carbon steel legs (304 optional)
• Accepts #8 filter bags or strainer baskets

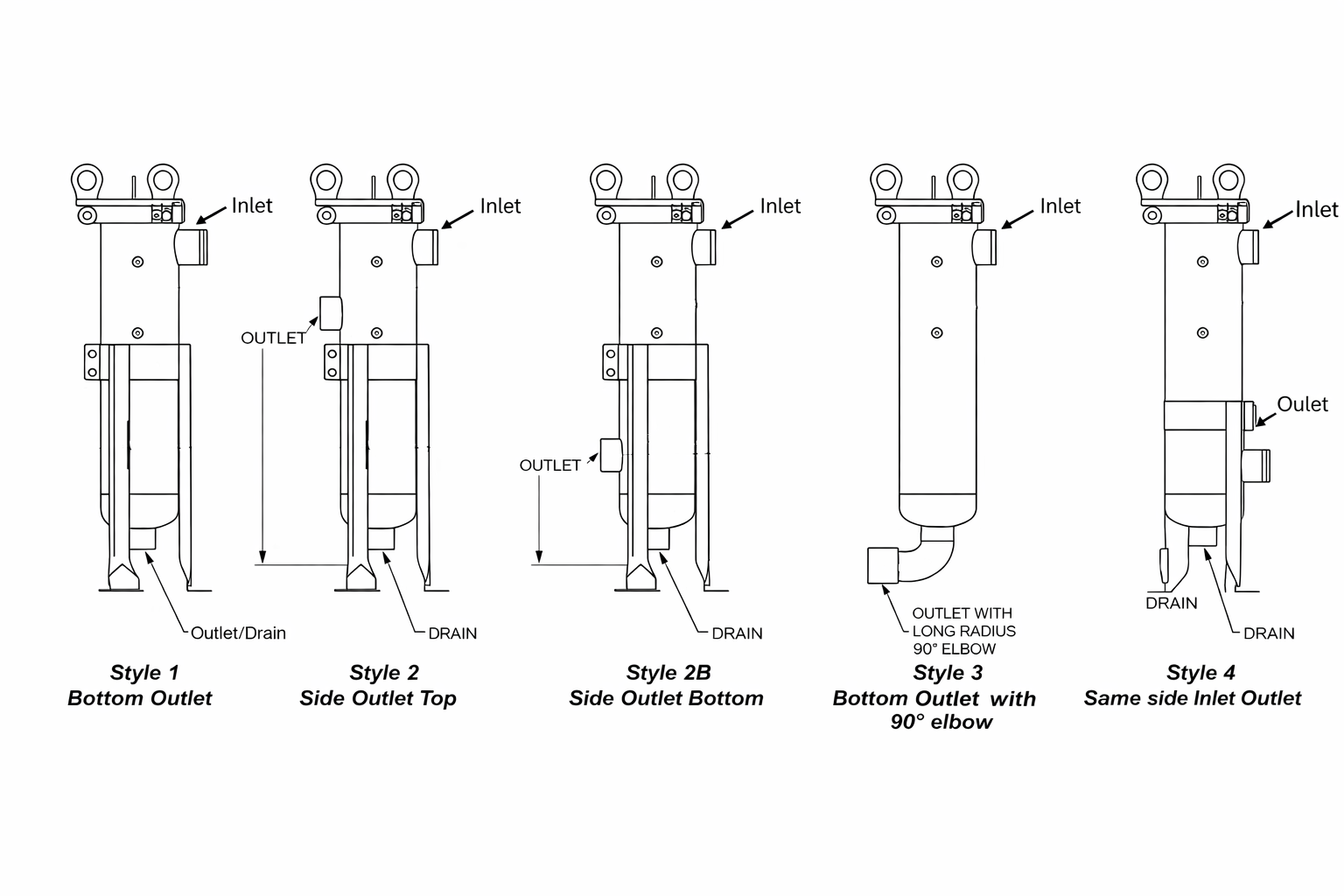

• Bottom, side, or elbow outlet configurations
• Buna-N seal standard; EPR, Viton®, and Teflon® available
• Supports NPT, flange, or sanitary connections

Ideal For
• Water treatment systems
• Paints, coatings, and adhesives
• Food & beverage processing
• Chemical batch filtration
• General industrial use
