Filter Tech Model 6-12 Filter Housing

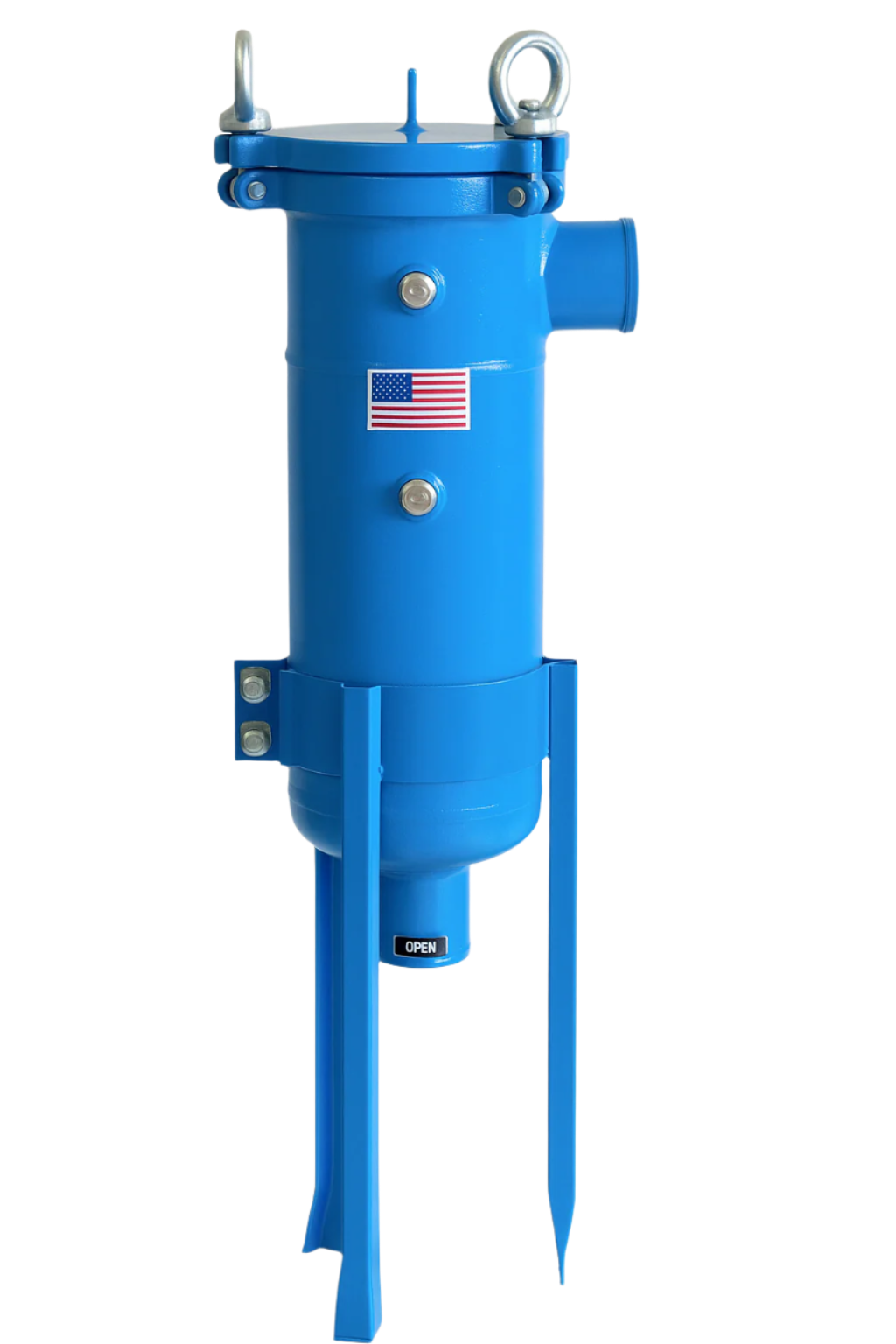

The Model 6–12 Bag Filter Housing is the compact workhorse of the Model 6 series, ideal for low-to-mid flow filtration applications requiring efficient particle removal in a smaller footprint. With a 13-inch basket depth and flow capabilities up to 100 GPM, the 6–12 is perfect for tight spaces without sacrificing performance.

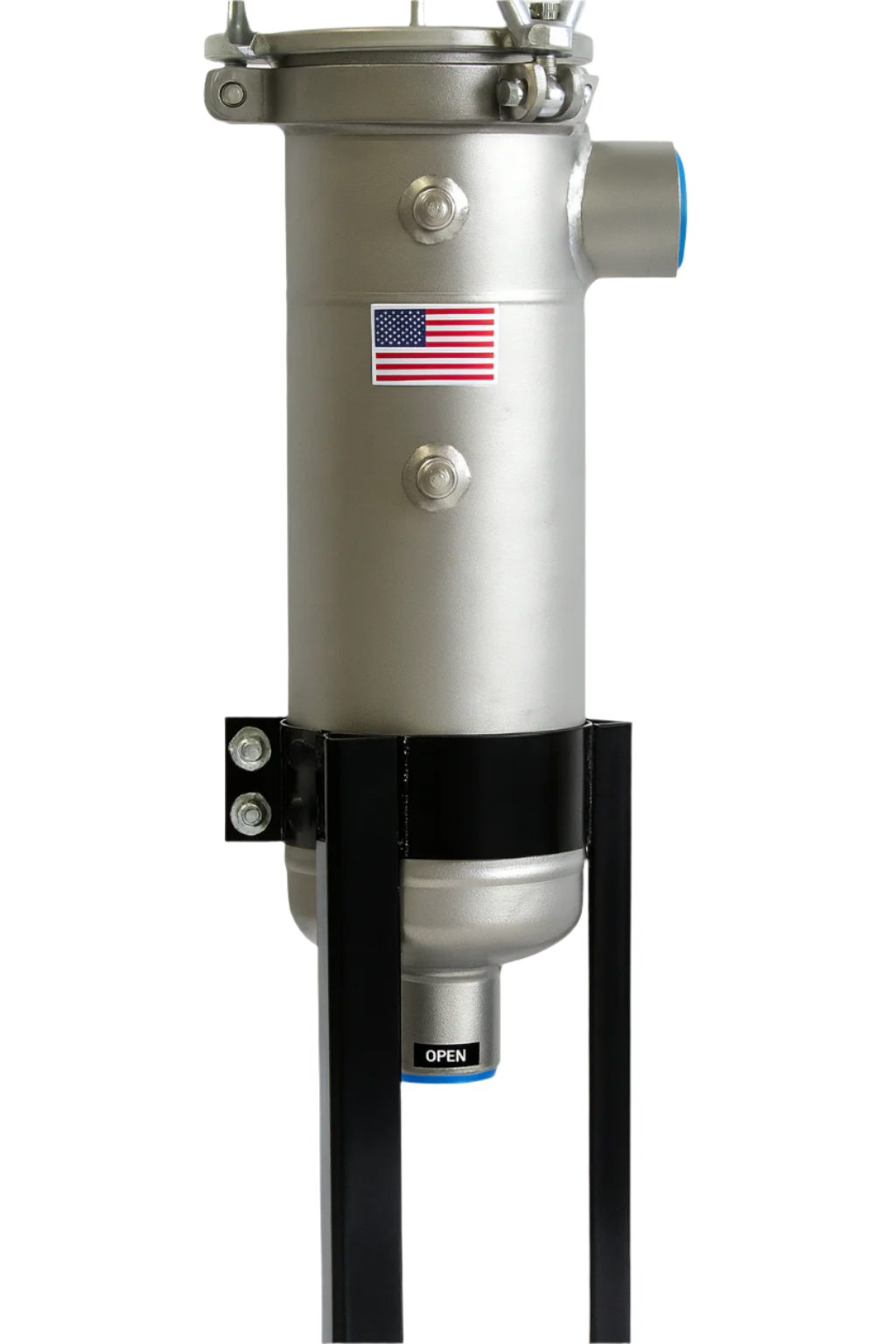

Constructed from your choice of carbon steel, 304 stainless steel, or aluminum. The tool-free eye bolt cover, adjustable carbon steel legs, and O-ring-sealed lid make servicing easy and secure.

Key Features:
• Compact 13" basket depth (Size #7 filter bag)
• Rated to 150 PSI operating pressure
• Flow rates up to 100 GPM
• Material options: Carbon Steel, 304 Stainless, or Aluminum
• Accepts Size #7 filter bags or basket strainers
• Buna-N seal standard (EPR, Viton®, Teflon® optional)

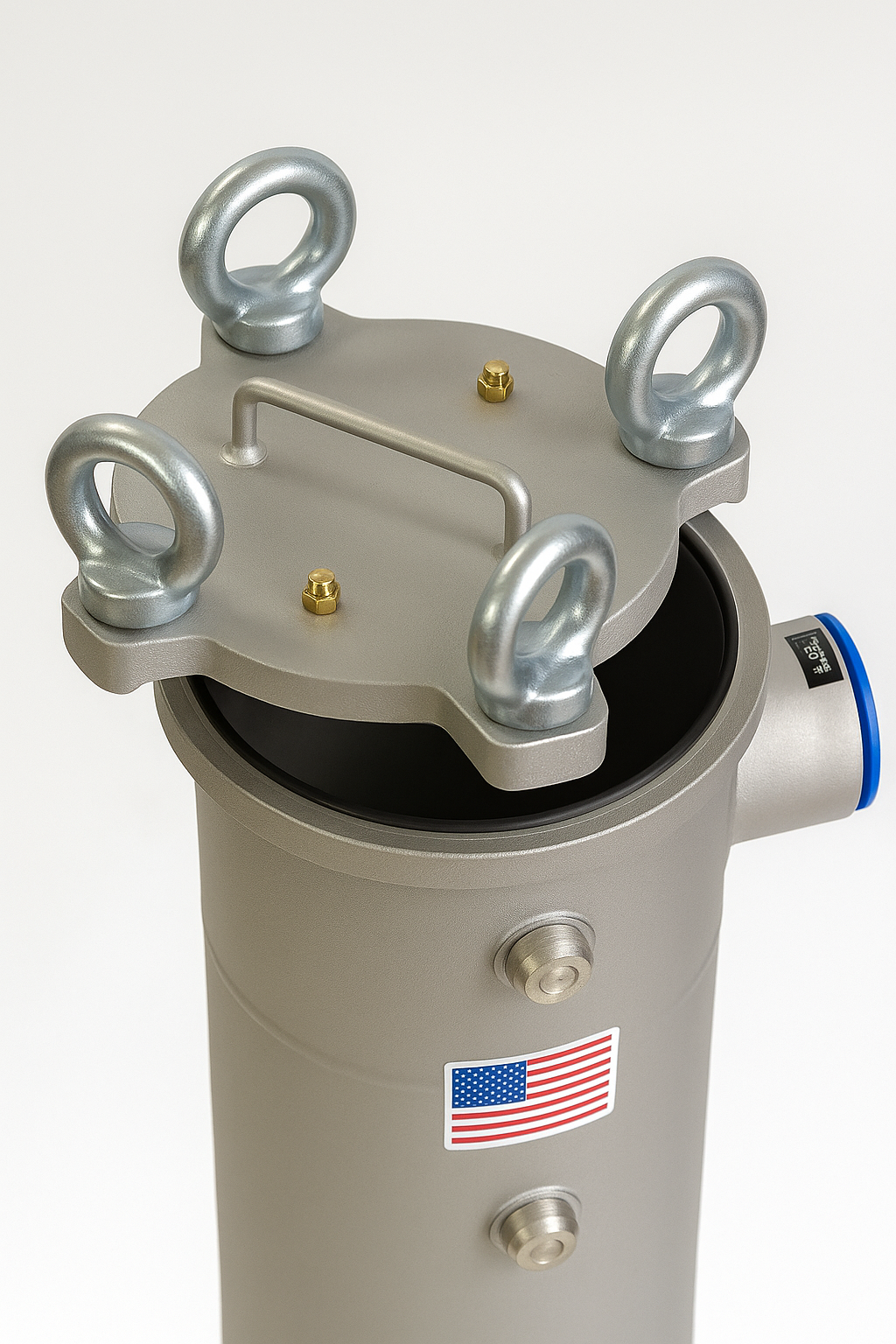

• Tool-free cover removal with eye bolts
• Adjustable-height carbon steel legs (304 stainless optional)

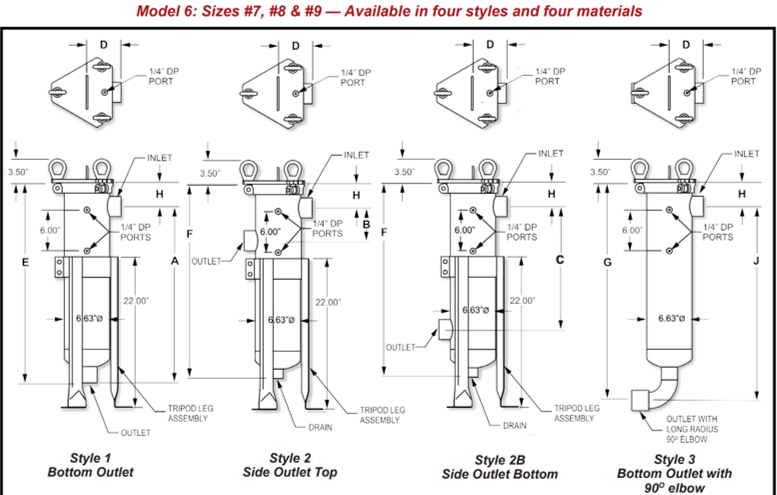

• Side, bottom, or elbow outlet options
• NPT or ANSI flange connections available

Applications:
• Water treatment systems
• Paints and coatings
• Chemical processing
• Food & beverage production
• Industrial filtration systems
