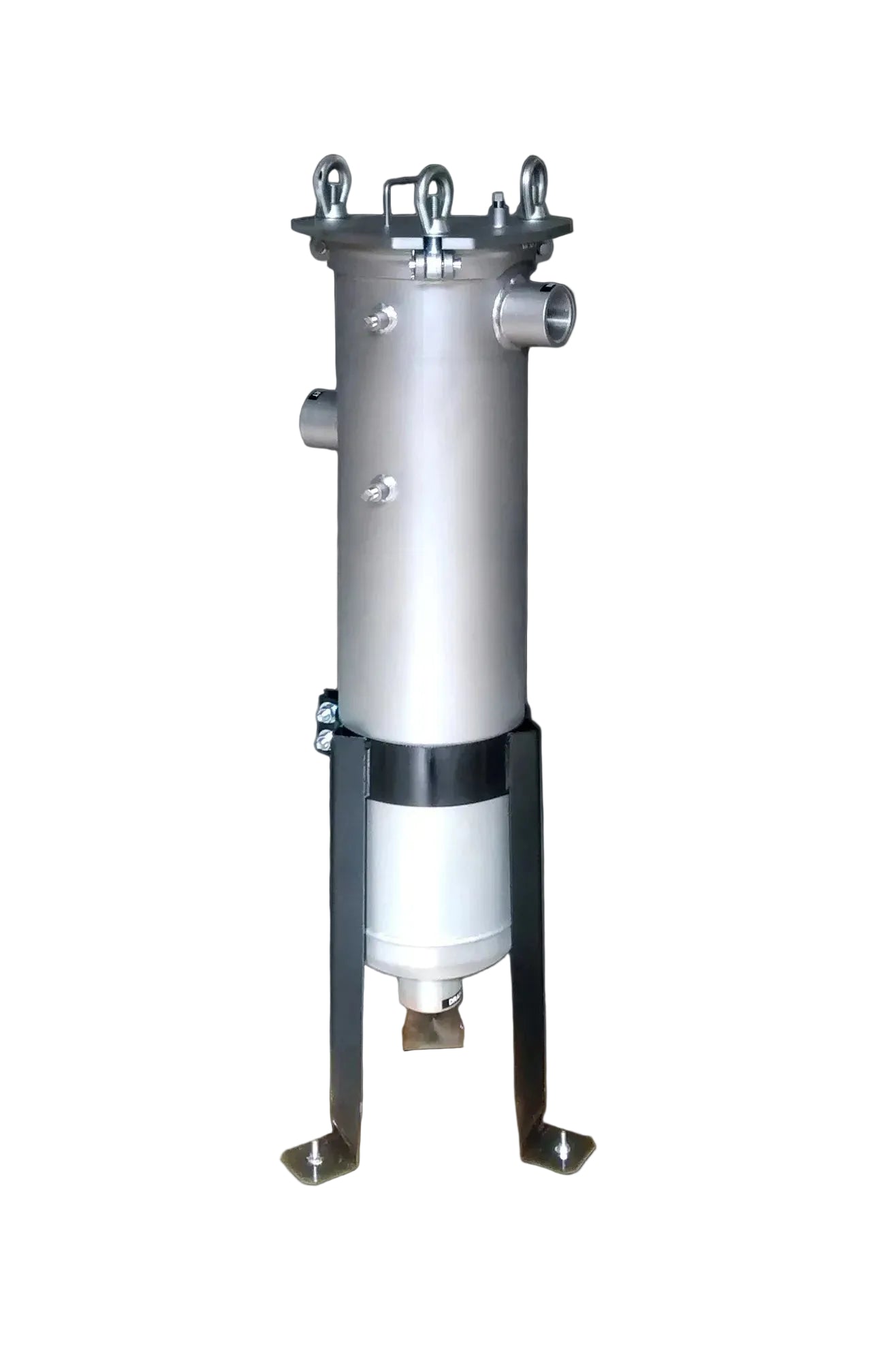

Filter Tech 8-30 Uni-Style Filter Housing

The Filter Technology Inc. Model 8-30 industrial filter housing is a high-capacity, single-bag filtration vessel designed for industrial liquid filtration at moderate to high flow rates. It accommodates one Size #2 filter bag and is commonly used in chemical processing, coatings, water treatment, and general industrial filtration applications where strength, reliability, and serviceability are critical.

The Model 8-30 is available in carbon steel, 304 stainless steel, and 316 stainless steel, allowing material selection based on process fluid compatibility, corrosion resistance, and operating environment—without changing the housing footprint or performance characteristics.

Why Choose the Filter Technology 8-30 Filter Housing?

• Supports high flow rates using a single Size #2 filter bag

• Multiple construction material options to meet chemical compatibility requirements

• Simple cover design allows fast filter bag change-outs and reduced downtime

• Compatible with standard industry Size #2 filter bags across a wide range of micron ratings

• Suitable for continuous or batch filtration processes

Technical Overview

• Maximum operating pressure: 150 PSI

• Maximum flow rate: up to 220 GPM

• Typical operating flow range: 50–220 GPM, dependent on bag micron rating, fluid viscosity, and differential pressure

• Filter bag size: Size #2

• Construction materials (selectable): Carbon Steel, 304 Stainless Steel, 316 Stainless Steel, and Aluminum

• Standard basket: Filter bag basket with 9/64" perforations (PB)

• Includes: Housing, filter basket, O-rings, and support legs

Additional Information

Click here for more info

• Carbon Steel: Cost-effective choice for non-corrosive liquids and general industrial applications
• Aluminum: Lightweight option suitable for non-corrosive fluids where reduced weight, easier handling, or lower installation loads are desired
• 304 Stainless Steel: Suitable for mildly corrosive fluids and applications requiring improved corrosion resistance
• 316 Stainless Steel: Recommended for more aggressive or chloride-bearing fluids and demanding chemical environments
• Polypropylene (PP): Corrosion-resistant, suitable for acids, bases, and general chemical service
• PVDF: Premium material offering superior chemical resistance than polypropylene for aggressive chemical environments

• Chemical processing and fluid transfer

• Paints, coatings, inks, and resin filtration

• Industrial water and wastewater filtration

• Pre-filtration ahead of cartridge or membrane systems

• General process liquid filtration in manufacturing environments


Maximum at 150 PSI:

• Carbon Steel — up to 400°F
• 304 Stainless Steel — up to 400°F
• 316 Stainless Steel — up to 400°F
• Aluminum — up to 250°F

Maximum at 100 PSI:

• PVC — up to 150°F
• Polypropylene — up to 150°F
