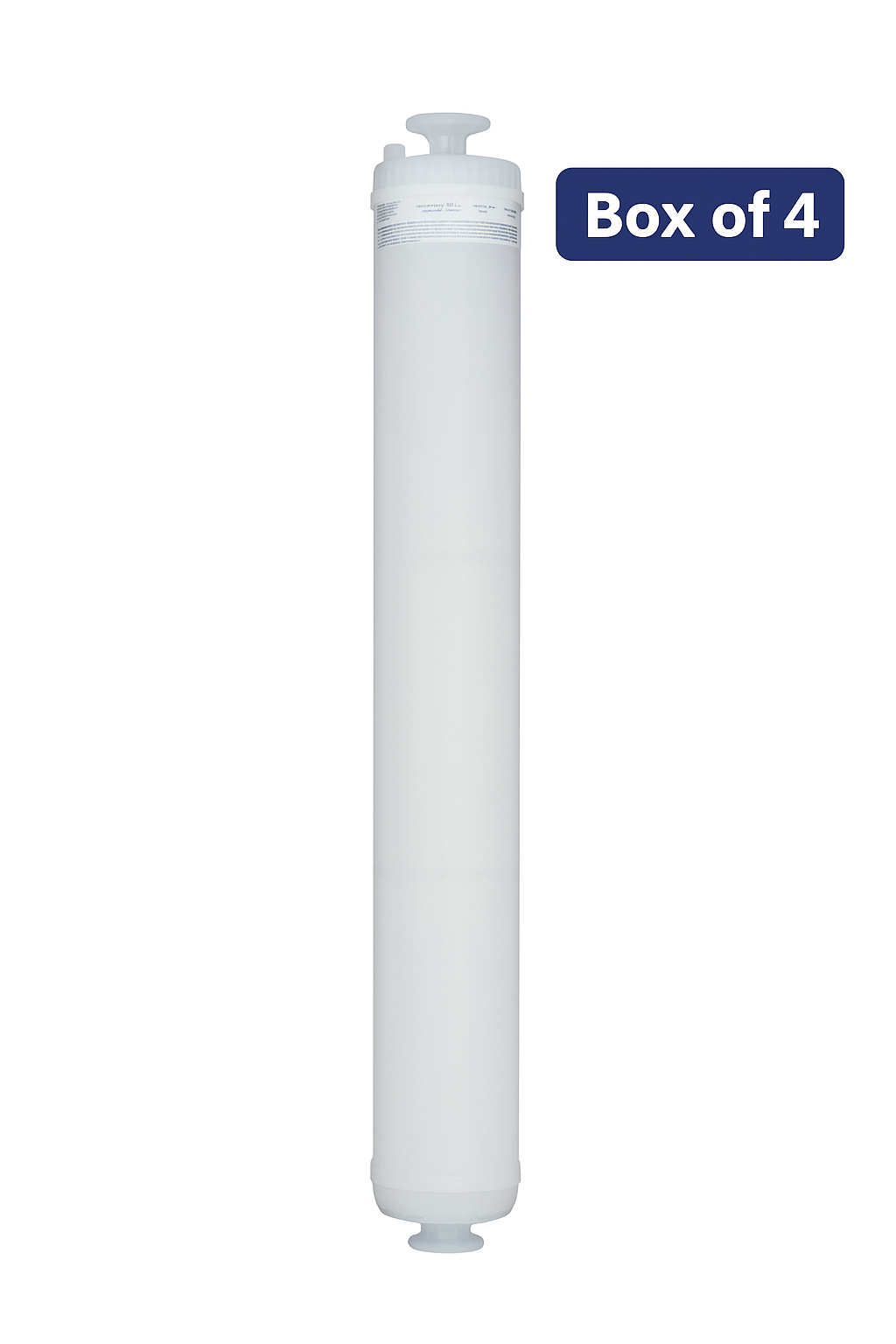

Fiberglass Depth Capsule Filter (General Purpose) – GGD

Click here for more information

The GGDX Capsule Filter features pleated fiberglass depth media, engineered for high-capacity clarification and prefiltration in both liquid and gas applications. As part of the general service line, GGDX offers an economical solution for removing bulk contaminants early in the process, helping protect and extend the life of critical downstream filters.

With broad chemical compatibility and high particulate retention, GGDX is well-suited for industrial and chemical filtration needs where validation is not required.

Key Features:

• Pleated Fiberglass Depth Media: High contaminant holding capacity
• General Service Value: Cost-effective filtration for non-critical steps
• FDA & EC Compliant: Approved for repeated food contact
• Broad Chemical Compatibility: Handles acids, bases, and more
• Scalable Performance: Consistent results from lab to production

Performance Parameters:

• Max Operating Temp (Water): 110 °F at 30 psid (43 °C at 2.07 bar)
• Forward Pressure Limit: 80 psid at 68 °F
• Reverse Pressure Limit: 50 psid at 68 °F
• Recommended Changeout: 35 psid

Sterilization & Cleaning:

• Autoclave: 250 °F (121 °C), 30 min, 25+ cycles
• Inline Steam: 275 °F (135 °C), 30 min
• Hot Water: 194 °F (90 °C), 30 min, max 3 psid forward
• Compatible with H₂O₂, peracetic acid, bleach, etc.

Construction Materials:

• Filtration Media: Pleated fiberglass depth media
• Support Cage & Housing: Polypropylene
• Sealing Method: Thermal bonding
• O-Rings: Buna, Viton® (FKM), EPDM, Silicone, FEP-encapsulated options

Typical Applications:

• Chemicals
• Acids & bases
• Inks & dyes
• Process water
• Air & gases
