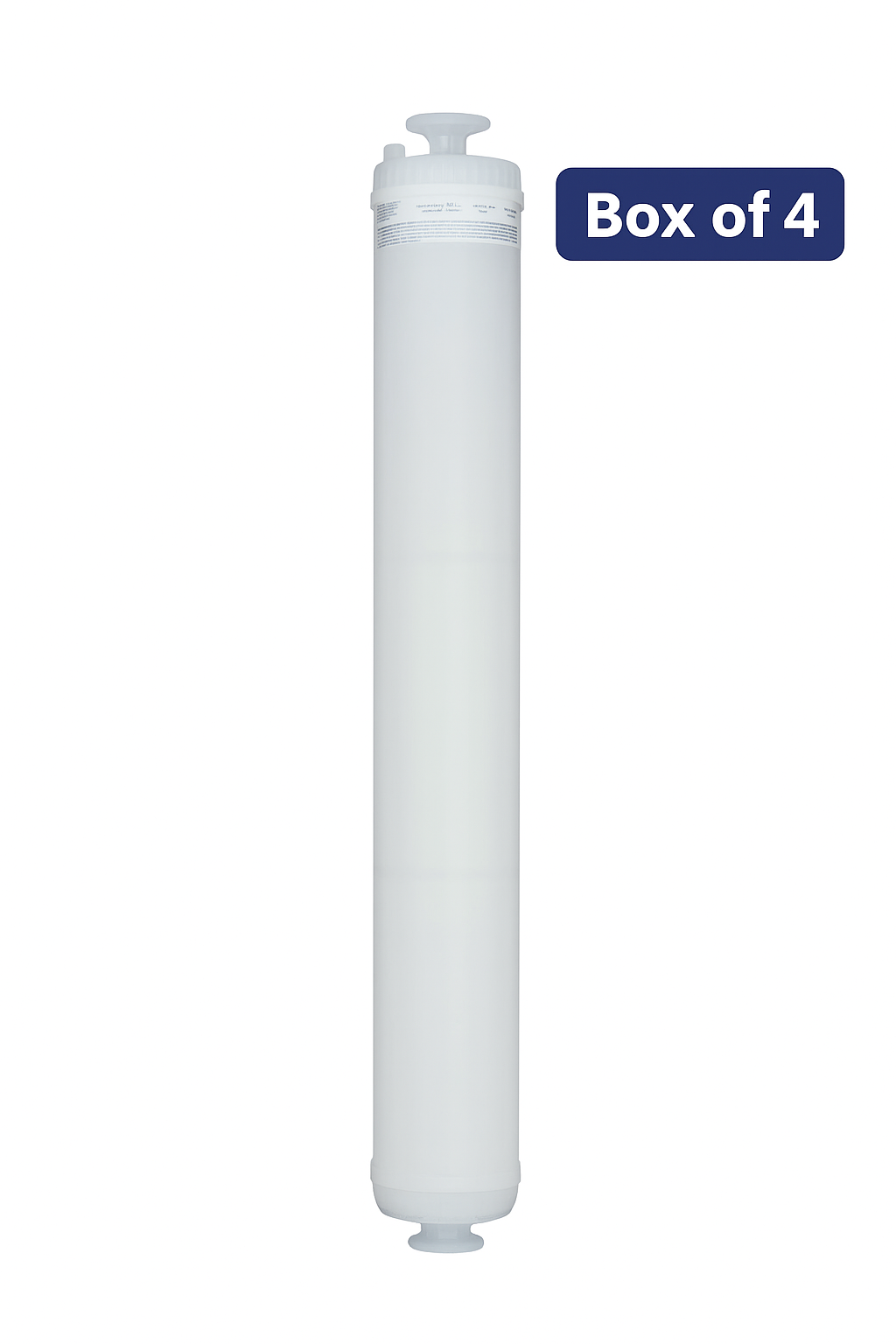

30 Inch PES Pharmaceutical Grade Filter Capsule (PPSXPGC)

Click here for more information

The PPSX Capsule Filter features a dual-layer Polyethersulfone (PES) membrane, validated for sterilizing aqueous solutions in demanding applications. Designed for high retention, low extractables, and low protein binding, PPSX delivers enhanced security and consistent performance from lab scale to full production.

Available in pore sizes from 0.03 to 1.2 µm, PPSX filters are ideal for critical processes involving vaccines, biologicals, diagnostics, ophthalmics, and more. Each capsule is integrity tested and available pre-sterilized.

Key Features:

• Validated 7-log bacteria retention (ASTM F 838-15(ae1))
• Dual-layer PES design for high flow and added security
• Broad chemical compatibility and wide pH range
• 100% integrity tested with low binding characteristics
• Available pre-sterilized for aseptic processes

Performance Parameters:

• Max Operating Temp (Water): 110 °F at 30 psid (43 °C at 2.07 bard)
• Forward Pressure Limit: 80 psid at 68 °F (5.52 bard)
• Reverse Pressure Limit: 50 psid at 68 °F (3.45 bard)
• Recommended Changeout: 35 psid (2.41 bard)

Sterilization & Cleaning:

• Autoclave: 250 °F (121 °C), 30 min, 25+ cycles
• Inline Steam: 275 °F (135 °C), 30 min
• Hot Water: 194 °F (90 °C), 30 min, max 3 psid forward
• Compatible with standard chemical sanitizers

Filtration Area (Nominal):

• 2" – 1.0 ft² (0.10 m²)
• 5" – 2.9 ft² (0.27 m²)
• 10" – 6.1 ft² (0.57 m²)
• 20" – 12.2 ft² (1.14 m²)
• 30" – 18.3 ft² (1.71 m²)
• 40" – 24.4 ft² (2.28 m²)

Validated Microbial Retention:

• 0.03 µm: Acholeplasma laidlawii
• 0.10 µm: Brevundimonas diminuta
• 0.22 µm: Brevundimonas diminuta
• 0.45 µm: Serratia marcescens
• 0.65 µm: Saccharomyces cerevisiae

Construction Materials:

• Filtration Media: Double Layered Polyethersulfone (PES)
• Capsule Housing: Polypropylene
• Sealing Method: Thermal Bonding

Regulatory & Quality Compliance:

• USP <643> & <645> TOC and Conductivity Compliant
• USP Class VI, MEM Elution Cytotoxicity Certified
• Non-fiber releasing per 21 CFR 210.3(b)(6) & 211.72
• FDA compliant for repeated food contact (21 CFR 174.5, 177.1500, etc.)

Typical Applications:

• WFI, SVPs & LVPs
• Diagnostics & Biologicals
• Vaccines, Ophthalmics
• Buffers & Protein-Based Formulations
