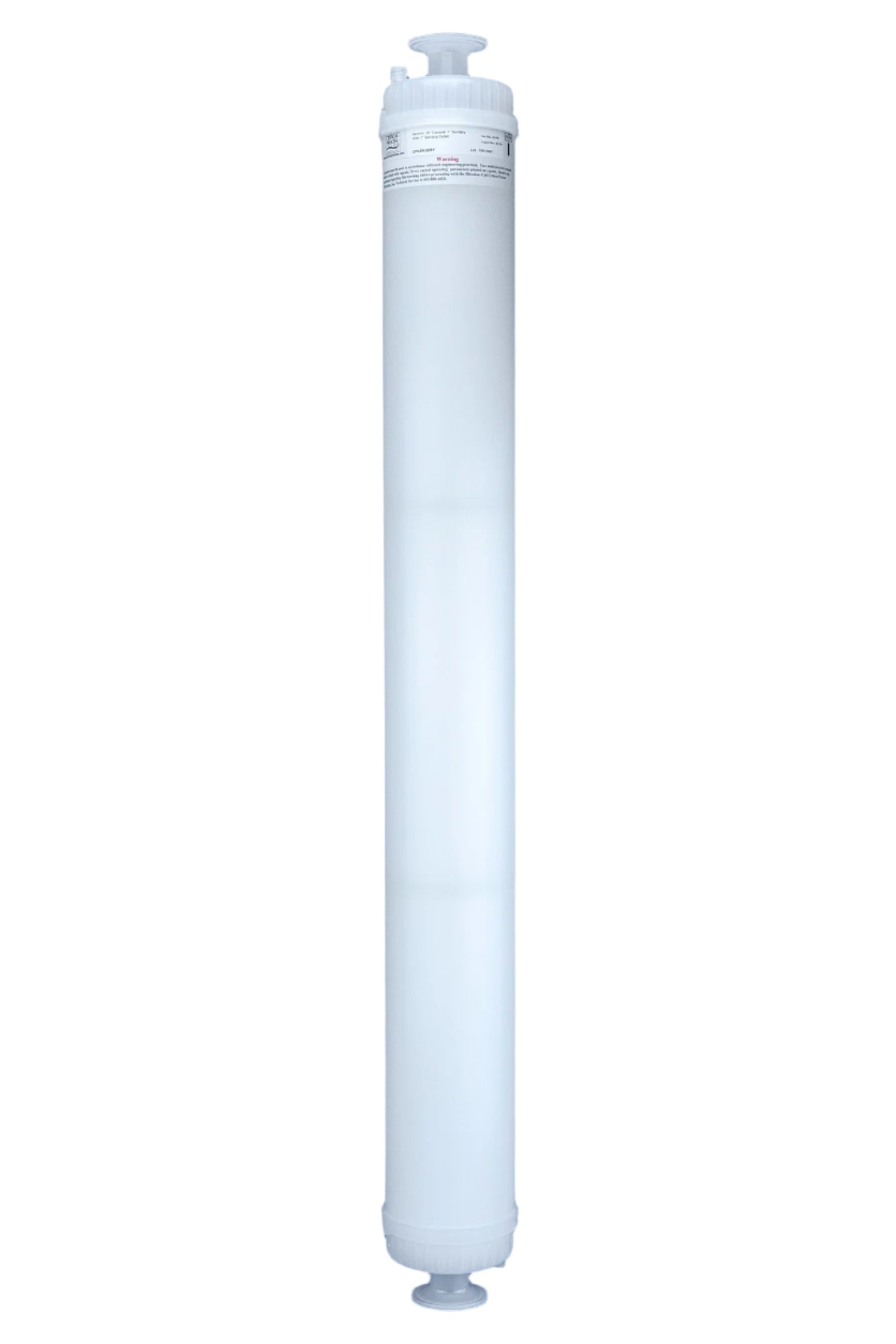

30 Inch Nylon 66 Electronic Grade Filter Capsule (ENMXEGC)

Click here for more information

The ENMX Capsule Filter features a Nylon 6,6 membrane engineered for ultrafine particle removal in critical high-purity applications. With broad chemical compatibility and consistent performance across scales, ENMX filters are ideal for ultrapure water systems, electronic-grade chemicals, solvents, and photoresists.

These hydrophilic filters are pulse power flushed until rinse-up reaches >18 Megohm-cm and <3 ppb TOC. Each unit is 100% integrity tested and constructed to provide high retention, high throughput, and long service life in demanding environments.

Key Features:

• Nylon 6,6 Membrane: Excellent compatibility with chemicals, solvents, and aqueous fluids

• High Purity Performance: Pulse power flushed for minimal TOC and conductivity contamination

• Integrity Tested: Each filter individually validated for particle retention and filter integrity

• Low Extractables: Ideal for final filtration in high-purity systems

Typical Applications:

• Ultrapure water systems (UPW/UPDI)

• Bulk chemical delivery

• Solvents & etchants

• Photoresists & developers

• Electronics manufacturing

Performance Parameters:

• Max Operating Temp (Water): 110 °F at 30 psid (43 °C at 2.07 bar)

• Liquid Operational Pressure: 80 psi at 68 °F

• Gas Operational Pressure: 60 psi at 68 °F

• Forward Pressure Limit: 80 psid at 68 °F

• Reverse Pressure Limit: 50 psid at 68 °F

• Recommended Changeout: 35 psid

Filtration Area (Nominal):

• 2" – 1.2 ft² (0.11 m²)

• 5" – 3.3 ft² (0.30 m²)

• 10" – 7.0 ft² (0.65 m²)

• 20" – 14.0 ft² (1.30 m²)

• 30" – 21.0 ft² (1.95 m²)

• 40" – 28.0 ft² (2.60 m²)

Integrity Testing – Water Wetted Membrane:

Diffusion Test Limits:

Construction Materials:

• Filtration Media: Nylon 6,6 membrane with polyester support

• Support Structure & Housing: Polypropylene

• Sealing Method: Thermal Bonding

• O-Rings (Cartridges only): Buna, Viton® (FKM), EPDM, Silicone, FEP-Encapsulated options

Sanitization & Sterilization:

• Autoclave: 250 °F (121 °C), 30 min, 25+ cycles

• Inline Steam: 275 °F (135 °C), 30 min, 25+ cycles

• Filtered Hot Water: 194 °F (90 °C), 30 min, max 3 psid

• Chemical Cleaning: H₂O₂, peracetic acid, sodium hypochlorite, etc.

Compliance & Standards:

• Extractables: Low non-volatile residue

• TOC/Conductivity: Meets SEMI F63 standard

• Non-Fiber Releasing: Complies with 21 CFR 210.3 (b)(6) & 211.72

• FDA Compliance: Materials suitable for repeated food contact per 21 CFR §§174.5, 177.1500, 177.1630, etc.
