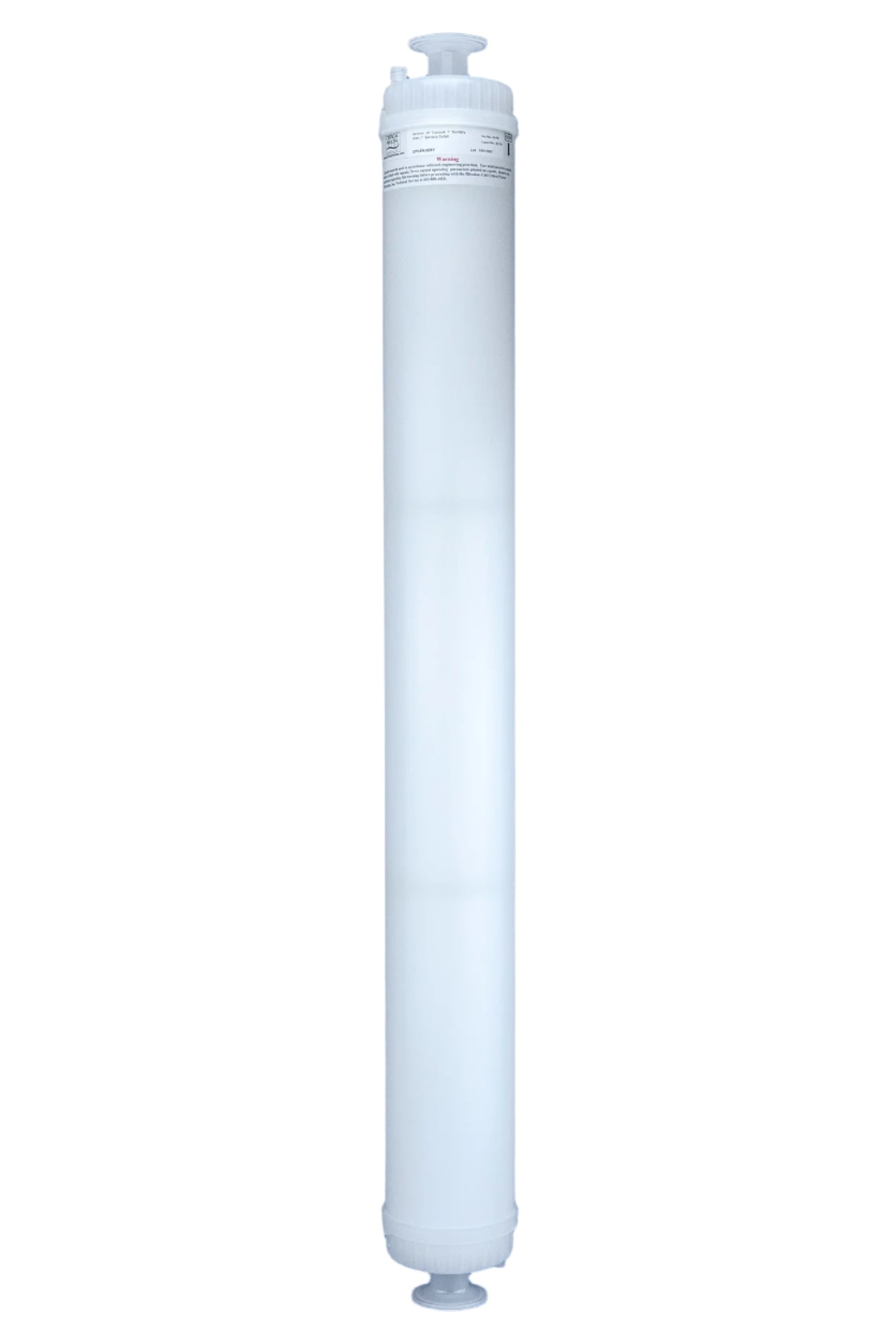

30 Inch Hydrophobic PVDF Food Grade Capsule (FPVWBX)

Click here for more information

The FPVWBX Capsule Filter features a hydrophobic polyvinylidene fluoride (PVDF) membrane designed for bioburden control in non-aqueous liquids and process gases. With broad chemical compatibility and high particulate retention, FPVWBX is ideal for vent filtration and sterile air applications in food and beverage processes.

Constructed with high-capacity membrane and a rugged polypropylene housing, FPVWBX capsules are flushed to minimize extractables, meet FDA and EC standards, and are integrity tested to ensure reliable performance.

Key Features:

• Hydrophobic PVDF Membrane: Ideal for vent and gas filtration
• Broad Chemical Compatibility: Resistant to non-aqueous solvents and sanitizers
• High Retention Efficiency: Optimized for bioburden control
• FDA & EC Compliant: Approved for repeated food contact
• Low Extractables: Clean effluent with minimal interference

Performance Parameters:

• Max Operating Temp (Water): 110 °F at 30 psid (43 °C at 2.07 bar)
• Forward Pressure Limit: 80 psid at 68 °F
• Reverse Pressure Limit: 50 psid at 68 °F
• Recommended Changeout: 35 psid

Sterilization & Cleaning:

• Autoclave: 250 °F (121 °C), 30 min, 25+ cycles
• Inline Steam: 275 °F (135 °C), 30 min
• Hot Water: 194 °F (90 °C), 30 min, max 3 psid forward
• Compatible with H₂O₂, peracetic acid, bleach, etc.

Filtration Area (Nominal):

• 2" – 1.0 ft² (0.09 m²)
• 5" – 2.8 ft² (0.26 m²)
• 10" – 6.0 ft² (0.56 m²)
• 20" – 12.0 ft² (1.12 m²)
• 30" – 18.0 ft² (1.68 m²)
• 40" – 24.0 ft² (2.24 m²)

Construction Materials:

• Filtration Media: Hydrophobic high-capacity PVDF membrane with polyester support
• Support Cage & Core: Polypropylene
• Sealing Method: Thermal bonding
• O-Rings: Buna, Viton® (FKM), EPDM, Silicone, FEP-encapsulated options

Typical Applications:

• Tank vents
• Pressurized gas lines
• Wine and beer gas filtration
• Bottled water headspace protection
• Clear juice storage tanks
