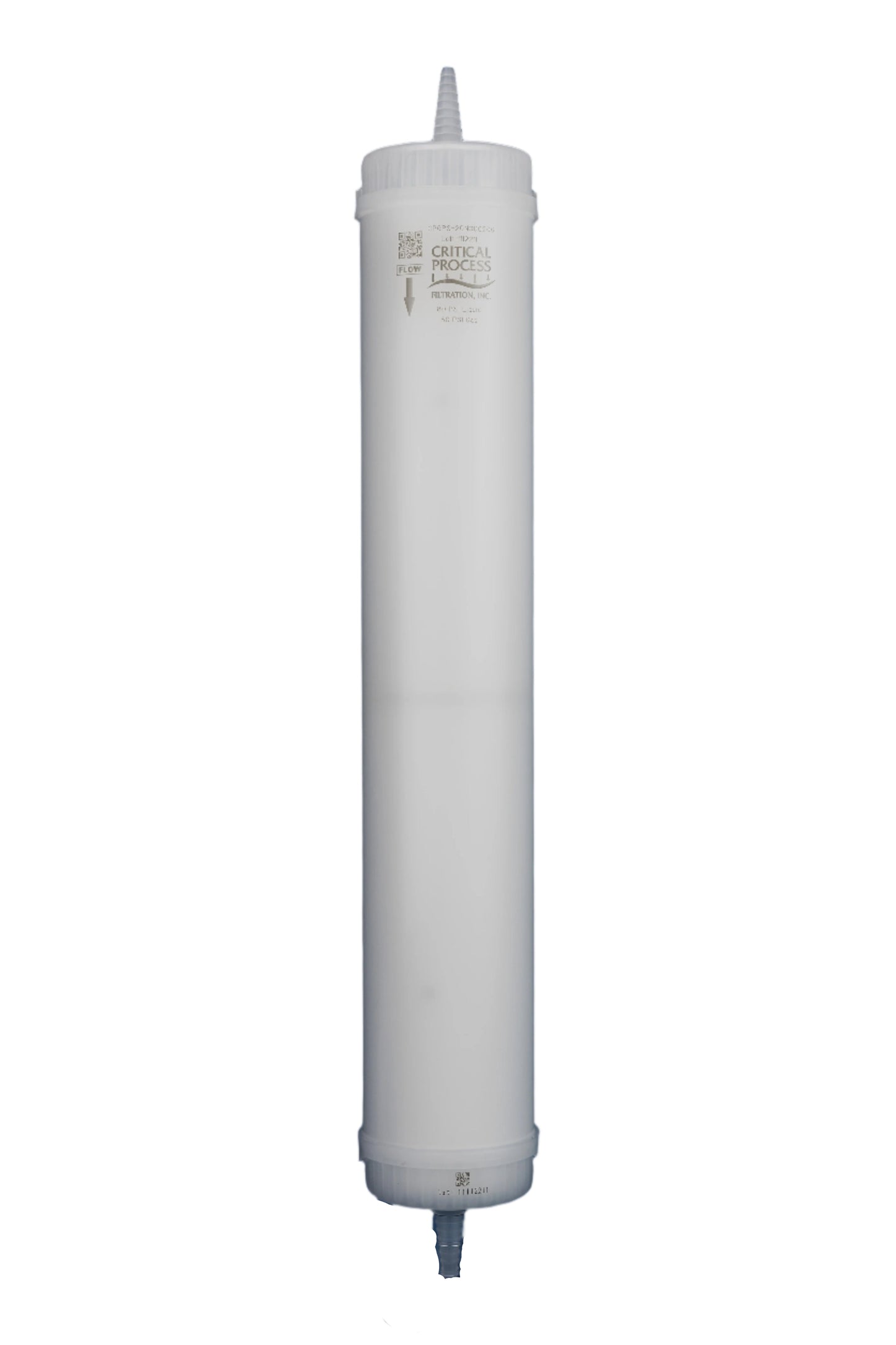

20 Inch Nylon 66 General Grade Filter Capsule (GNMXGGC)

Click here for more information

The GNMX Capsule Filter features a hydrophilic Nylon 6,6 membrane that provides reliable fine particle removal in both aqueous and non-aqueous solutions. Designed for general service applications, GNMX offers a cost-effective filtration solution for early-stage particle removal, helping protect more critical downstream filters.

With excellent flow, chemical compatibility, and low extractables, GNMX is ideal for less critical clarification and prefiltration processes that demand consistent performance.

Key Features:

• Nylon 6,6 Membrane: Reliable particle retention with wide chemical compatibility
• Cost-Effective General Service Design: Reduces load on downstream filters
• FDA & EC Compliant: Safe for repeated food contact
• Hydrophilic Membrane: High flow and low protein binding
• Scalable Construction: Consistent materials across all sizes

Performance Parameters:

• Max Operating Temp (Water): 110 °F at 30 psid (43 °C at 2.07 bar)
• Forward Pressure Limit: 80 psid at 68 °F
• Reverse Pressure Limit: 50 psid at 68 °F
• Recommended Changeout: 35 psid

Sterilization & Cleaning:

• Autoclave: 250 °F (121 °C), 30 min, 25+ cycles
• Inline Steam: 275 °F (135 °C), 30 min
• Hot Water: 194 °F (90 °C), 30 min, max 3 psid forward
• Compatible with H₂O₂, peracetic acid, bleach, etc.

Construction Materials:

• Filtration Media: Nylon 6,6 membrane
• Support Cage & Housing: Polypropylene
• Sealing Method: Thermal bonding
• O-Rings: Buna, Viton® (FKM), EPDM, Silicone, FEP-encapsulated options

Typical Applications:

• Process water
• DI water
• Chemicals
• Solvents
• Inks and dyes
